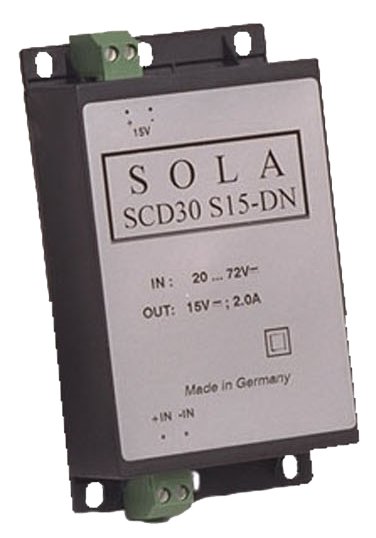

The SolaHD SCD Series Encapsulated Industrial DC to DC Converter Power Supply is a compact, durable converter designed to power industrial control instrumentation devices and equipment where AC power is not convenient or accessible. With high reliability and wide input range, these units can operate through difficult factory floor conditions. The DIN rail and chassis mounting are easy to install, and terminations are easy to access and wire. The encapsulated design meets IP20 specifications for use in harsh environments.

The SCD power supply regulates voltage for sensitive electronic equipment run from battery power. For example, a 24 VDC battery system where the battery voltage can be 30V, sometimes higher during charging, and dip below 22V under heavy load. The SCD can be used to stabilize the voltage for these devices not designed to handle wider voltage swings. They also serve as an alternative to running AC power through a large industrial machine. The SCD can use 24VDC commonly available on many parts of the machine to create other voltages needed to run sensors, transducers and other devices that the machine requires to work properly.

Applications

• Encoders
• Special sensors
• Communications
• Instrumentation
• Telecommunication systems
• Remote site/harsh environments

Features

• Encapsulated design to resist environment
• 20 to 72 VDC input range
• M3 screw clamp terminations
• Simple snap-on for DIN Rail TS35/7.5 or TS35/15
• Galvanic isolation
• IP20 protection
• cULus listed, Ind. Control Equip., E61379
  • UL 60950/CSA C22.2 No. 234-M90
• CE-IEC/EN60950-1
• RoHS compliant
