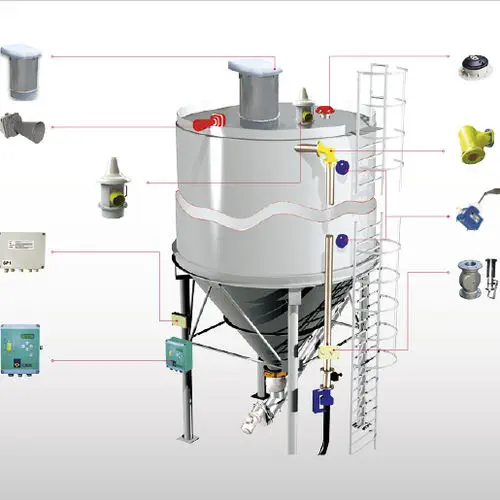

The WAMGROUP KCS is a comprehensive silo safety system engineered to prevent overfilling and overpressure incidents during pneumatic tanker filling of powders and granular materials. Unlike standalone level switches that only signal an alarm, the KCS integrates level detection, pressure monitoring, and pneumatic valve actuation into a centrally managed safety loop — automatically closing off material flow when unsafe conditions are detected.

How does the KCS prevent overfilling differently from a standalone level switch?

A standalone high-level switch signals an alarm but relies on operator response. The KCS uses a two-tier detection approach: high-level indicators provide early warning, while high-high-level detectors trigger automatic closure of the pneumatic pinch valve on the filling line serving that specific silo. The central control panel simultaneously verifies that the correct silo is connected before allowing the filling cycle to begin — eliminating the risk of pumping material into the wrong silo, a common and costly error in multi-silo installations.

What happens when overpressure is detected during filling?

Differential pressure switches or electronic pressure gauges continuously monitor internal silo pressure. If pressure exceeds the safe threshold — typically due to a clogged exhaust filter or excessive conveying air — the KCS automatically closes the pneumatic pinch valve on the filling line and triggers both audible and visual alarms. VCP safety relief valves provide a mechanical backup pressure-relief path. Simultaneously, the system activates the exhaust filter cleaning cycle to restore normal pressure conditions before the filling sequence can resume.

Which industries rely on the KCS for regulatory compliance?

The KCS is widely deployed in food processing, building materials, chemical, and plastics industries where pneumatic tanker delivery is the standard bulk material transfer method. The system event log provides auditable documentation of filling operations, alarm events, and maintenance actions — supporting compliance with workplace safety regulations and environmental dust-emission standards. A single central panel can manage up to 32 silos, making the KCS scalable from single-silo receiving stations to large multi-product terminals.
