Product Specifications
- Brand
- Shenzhen Sinexcel Electric Co., Ltd.
- Part Number
- AHF
- Product Type
- Active Harmonic Filter
- Harmonic Range
- 2nd–50th (selectable)
- Efficiency
- ≥97 % (Standard), 98.5 % (PRO), 99 % (SiC)
- Module Ratings
- 25–300 A
- Voltage
- 380/400/415 V, 3P3W/3P4W
- Full Response
- <5 ms
- Communication
- Modbus RTU (RS485), TCP/IP (option)
Product Description
A module connects in parallel with the non-linear load and injects an equal and opposite harmonic current, and distortion cancels at the point of common coupling. The controller decomposes the load current with FFT, intelligent FFT or the instantaneous reactive power method, and each order from the 2nd to the 50th can be selected and sized on its own. Reaction time is under 50 microseconds and full response is under 5 milliseconds.
Efficiency depends on the tier: the standard platform reaches at least 97 percent at an average switching frequency of 20 kHz, the PRO version reaches 98.5 percent, and the silicon carbide units reach 99 percent at a much higher switching rate. All tiers share the same control platform, the same Modbus register map and the same parallel architecture.

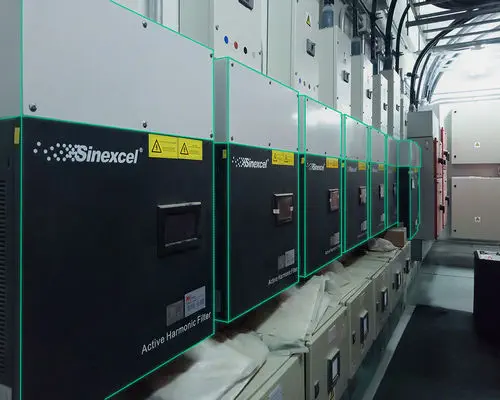

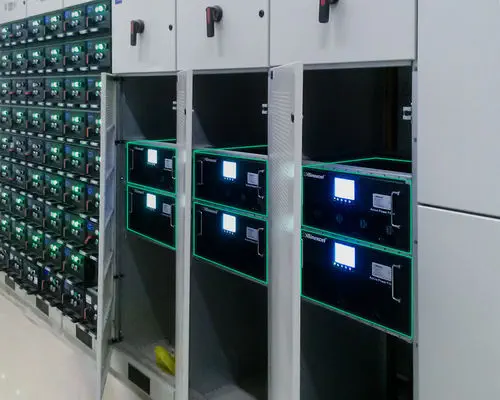

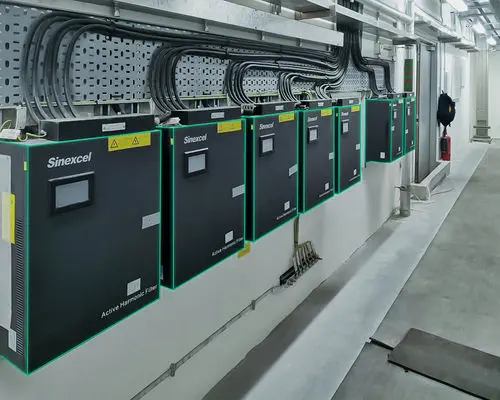

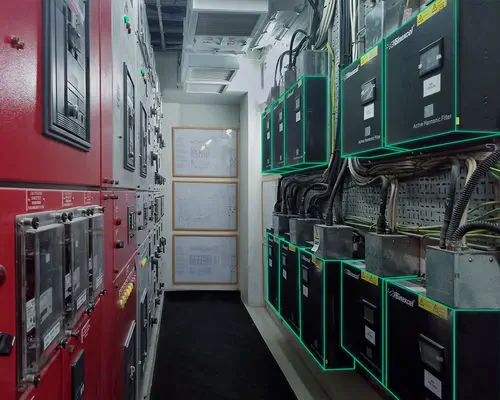

Single modules are built for wall, rack or cabinet mounting, and units parallel without a practical limit under one CT feedback network. Wiring suits 3-wire and 4-wire systems on the same unit, and the 400 V version accepts 380, 400 or 415 V nominal. Modbus RTU over RS485 is standard. TCP/IP over the RJ45 port is an option.
Beyond harmonics the module corrects displacement power factor and negative-sequence unbalance. The compensation mix is set per order and per function. Protection covers overvoltage, undervoltage, bridge reverse current, over-compensation and overtemperature, with 500 alarm records kept for review. The filter treats current distortion at the installation point, and it does not correct voltage sags, flicker or transients that originate upstream.
