Product Specifications
Manufacturer: Define Instruments
Model Number: TM-4DPI
Product Type: Isolated Transmitter
Input: Current, voltage, TC, RTD, potentiometer
Output: Voltage (±10V, 0-10V) or current (0-20mA, 4-20mA)
Isolation: 3750VAC
Accuracy: <±0.03% FSO
Power: 24VDC or 85-265VAC
Documents: Product Manual
Product Description
The Define Instruments TM-4DPI isolated transmitter is designed for applications that have an auxiliary supply to power the transmitter. It can be powered directly from a 24VDC source or a mains connection (85 to 265VAC), ideal for applications that are not possible with loop powered transmitters.
Resources & Documentation

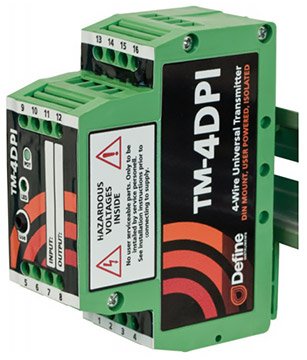

Isolated Transmitter - Universal Input with AC/DC Power | Define Instruments TM-4DPI
Product Specifications
Manufacturer: Define Instruments
Model Number: TM-4DPI
Product Type: Isolated Transmitter
Input: Current, voltage, TC, RTD, potentiometer
Output: Voltage (±10V, 0-10V) or current (0-20mA, 4-20mA)
Isolation: 3750VAC
Accuracy: <±0.03% FSO
Power: 24VDC or 85-265VAC
Documents: Product Manual
