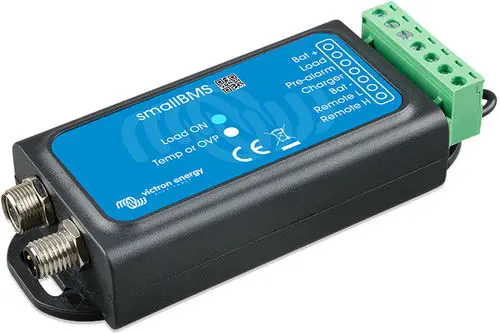

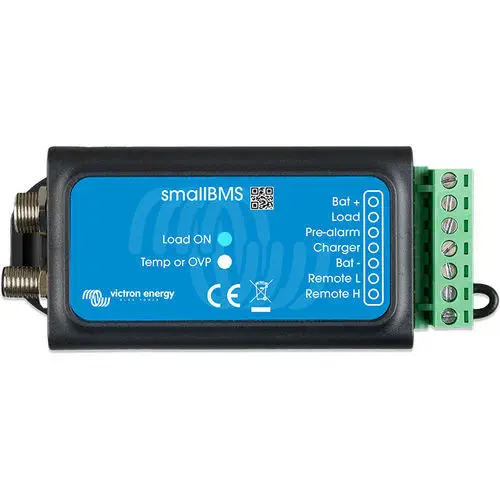

The Victron Energy smallBMS (BMS400100000) is a cost-effective standalone battery management system designed specifically for Victron Smart LiFePO4 batteries equipped with M8 circular connectors. Unlike the more comprehensive VE.Bus BMS, the smallBMS has no VE.Bus interface — making it ideal for smaller off-grid, marine, and RV installations where MultiPlus or Quattro inverter/charger integration is not required.

How does the three-tier protection sequence work?

The smallBMS provides graduated protection rather than an abrupt shutdown. When cell voltage drops toward the under-voltage threshold (default 2.8 V/cell, adjustable 2.6–2.8 V/cell at the battery), the pre-alarm output goes high at least 30 seconds before the load disconnect activates — giving system controllers time to shed non-critical loads or start a backup generator. If voltage continues to fall, the load disconnect output goes free-floating, disconnecting the load via an external relay, Battery Protect, or inverter remote on/off input. The charge disconnect output independently controls charging sources, going free-floating on cell over-voltage or when battery temperature exceeds 50°C or drops below 5°C — preventing charging in conditions that would damage LiFePO4 cells.

What are the limitations versus the VE.Bus BMS?

The smallBMS does not communicate with Victron VE.Bus inverter/chargers — it cannot command a MultiPlus or Quattro to reduce charge current or switch to float. For systems using those inverter/chargers, the VE.Bus BMS or Lynx Smart BMS is required. The smallBMS charge disconnect output sources only 10 mA, making it unsuitable for directly driving inductive loads like relay coils; it is designed to interface with charger remote on/off terminals, Cyrix-Li-Charge relays, or Cyrix-Li-ct Battery Combiners.
