Product Specifications
Manufacturer: Monarch Instrument
Model Number: Nova-Strobe LED
Product Type: LED Stroboscope
Flash Range: 30 to 500,000 FPM
Accuracy: 0.002% of setting or ±1 LSD
Models: BBL (basic), DBL (phase shift, 5 presets, NIST), PBL (external phase/time delay, continuous operation)
Power: Rechargeable battery or AC adapter (PBL)
Documents: Product Manual, Product Specs (2 Files)
Product Description

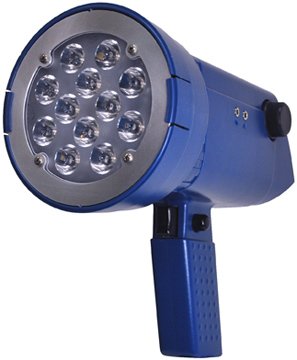

The Monarch Nova-Strobe LED portable stroboscopes are rugged industrial stroboscopes that provide an extremely bright, uniform light output for performing stop motion diagnostic inspection and RPM measurements. The twelve LED light source is extremely efficient which means long battery life and continuous cool operation. A wide operating range of 30-500,000 flashes per minute covers all applications. Each unit is available stand alone or a a kit.
The Basic BBL is designed for simple stop motion inspection and RPM measurement applications.
The Deluxe DBL adds internal phase shifting, memory for up to 5 preset flash rates, N.I.S.T. calibration certificate and tachometer mode for speed measurements up to 500,000 rpm using optional remote sensors or TTL pulse input/output.
The top of the line Phaser PBL has all the features of the DBL and adds external phase delay, time delay and virtual RPM mode. The PBL will also run continuously, 24/7 with the power supply/ recharger.
Benefits of LED's: Energy efficient with long battery life, extremely bright uniform light output, completely silent, cool operation, no lamp replacements, extremely high flash rates (to 500,000).
The Monarch Nova-Strobe LED portable stroboscopes include: Nova-Strobe BBL (BBL Strobe, universal 115/230 recharger with interchangeable wall plugs and manual); Nova-Strobe BBL Kit (same as above with plastic latching carry case); Nova-Strobe DBL (DBL Strobe, universal 115/230 recharger with interchangeable wall plugs, manual and NIST Cal); Nova-Strobe DBL Kit (same as above with plastic latching carry case); Nova-Strobe PBL (PBL Strobe, universal 115/230 power supply/recharger with USA and Euro cables, manual and NIST Cal); Nova-Strobe PBL Kit (same as above with Deluxe water tight plastic carry case).
LED Stroboscope - 30-500,000 FPM Portable | Monarch Nova-Strobe LED
Product Specifications
Manufacturer: Monarch Instrument
Model Number: Nova-Strobe LED
Product Type: LED Stroboscope
Flash Range: 30 to 500,000 FPM
Accuracy: 0.002% of setting or ±1 LSD
Models: BBL (basic), DBL (phase shift, 5 presets, NIST), PBL (external phase/time delay, continuous operation)
Power: Rechargeable battery or AC adapter (PBL)
Documents: Product Manual, Product Specs (2 Files)
