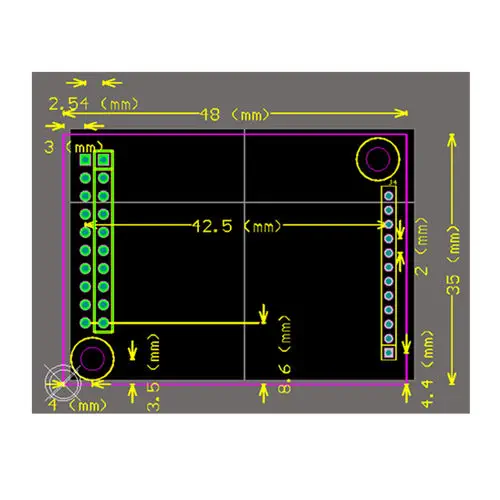

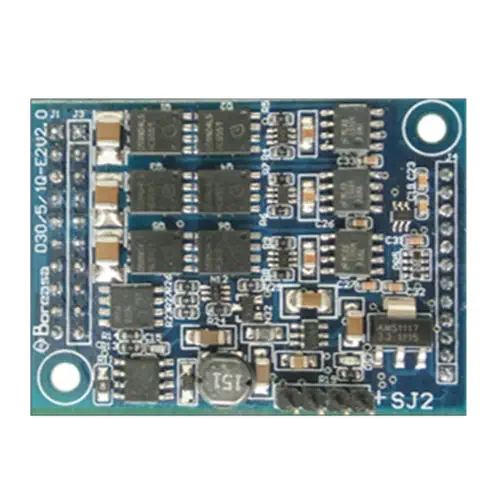

The Boreasa D30/5/1Q-E2 is a miniature BLDC motor driver that integrates the power stage and digital speed control loop onto a single 35 × 48 mm PCB with standardized pin headers — a form factor designed for direct soldering into a customer's main control board rather than DIN rail mounting in a cabinet. This embedded approach eliminates the cable harness, connector bulk, and separate enclosure of a standalone motor drive, making it targeted at high-volume OEM products where the motor driver is a component on the system PCB, not a field-replaceable module. The STM32F103C8T microcontroller runs a closed-loop PI speed control algorithm using feedback from three digital Hall sensors integrated in the motor, with speed command accepted as either a 0–3.3 V analog voltage or a 200 Hz PWM signal at 10–90% duty cycle.

What does 1-quadrant operation mean for application suitability?

A 1-quadrant (1Q) drive controls motor speed and torque in the forward motoring direction only — it accelerates and maintains speed but cannot actively brake or reverse the motor. Deceleration relies on the load's natural friction and inertia to slow the rotating assembly when drive power is reduced. This operating quadrant is appropriate for blower, fan, and pump applications where the load torque is unidirectional and active braking is unnecessary — precisely the target use case for Boreasa's blower product line up to 150 W. For applications requiring bidirectional control or regenerative braking, Boreasa offers 4-quadrant variants (e.g., D50/5/4Q) that add active deceleration and direction reversal capability. The single-quadrant limitation, combined with the pin-header form factor and 95% efficiency, makes the D30/5/1Q-E2 a cost-optimized embedded solution for dedicated blower and fan drive applications in medical devices, laboratory equipment, and industrial gas handling systems.

What protection features guard against motor and driver damage in embedded applications?

The driver monitors supply voltage for over-voltage and under-voltage conditions — critical in battery-powered or vehicle electrical systems where load-dump transients or deeply discharged batteries can produce voltage excursions outside the 10–30 VDC nominal range. Short-circuit protection on the motor phase outputs prevents driver destruction from wiring faults or winding insulation failure. Stall protection uses the Hall sensor feedback to detect a locked rotor condition and limits output current to prevent motor winding burnout — particularly important for blower applications where a blocked intake or seized bearing can stall the impeller. An analog temperature sensor input accepts a motor-mounted thermistor for winding temperature monitoring, enabling the controller to reduce output or shut down before insulation-damaging temperatures are reached. A Ready output signal provides a logic-level indication that the driver is powered, healthy, and the motor is running — useful as an interlock signal in safety-critical applications.
