Product Specifications
- Manufacturer
- Armstrong International
- Model Number
- CD-72SR
- Product Type
- Controlled Disc Steam Trap
- Max Allowable Pressure
- 1,010 psig @ 750°F (69.6 barg @ 399°C)
- Operating Pressure Range
- 3.5 to 600 psig @ 486°F (41.4 barg @ 252°C)
- Body Material
- Dual certified Forged Corten Steel (ASTM A105N / A350 LF2 Cl. 1)
- Disc & Seat Material
- ASTM A 564 TYP630, H900
- Documents
- Product Manual, Product Specs
Product Description
The Armstrong International CD-72SR Controlled Disc Steam Trap is a disc styled trap designed to control the trap's cycle rate. The reduced cycle rate provides the trap with a longer service life than typical disc traps, ensuring minimum maintenance and reduced steam costs.The CD-72SR is designed with three discharge ports, offering stable disc operation to extend the trap's life.
Armstrong International
Compare

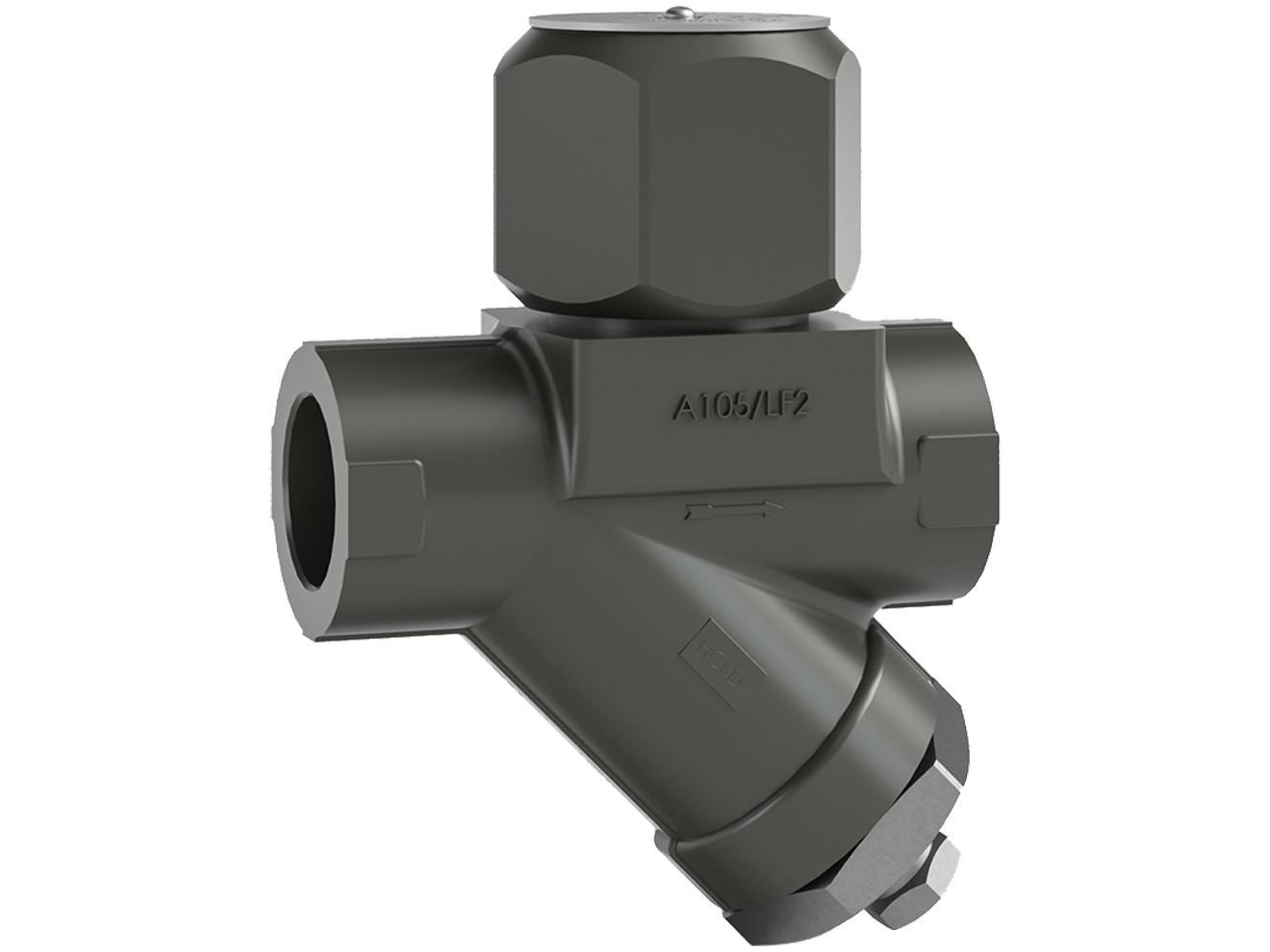

Controlled Disc Steam Trap - 1010 psi Forged Steel | Armstrong CD-72SR
Weldable in-line repairable
MPN/Series: CD-72SR
Product Specifications
- Manufacturer
- Armstrong International
- Model Number
- CD-72SR
- Product Type
- Controlled Disc Steam Trap
- Max Allowable Pressure
- 1,010 psig @ 750°F (69.6 barg @ 399°C)
- Operating Pressure Range
- 3.5 to 600 psig @ 486°F (41.4 barg @ 252°C)
- Body Material
- Dual certified Forged Corten Steel (ASTM A105N / A350 LF2 Cl. 1)
- Disc & Seat Material
- ASTM A 564 TYP630, H900
- Documents
- Product Manual, Product Specs
