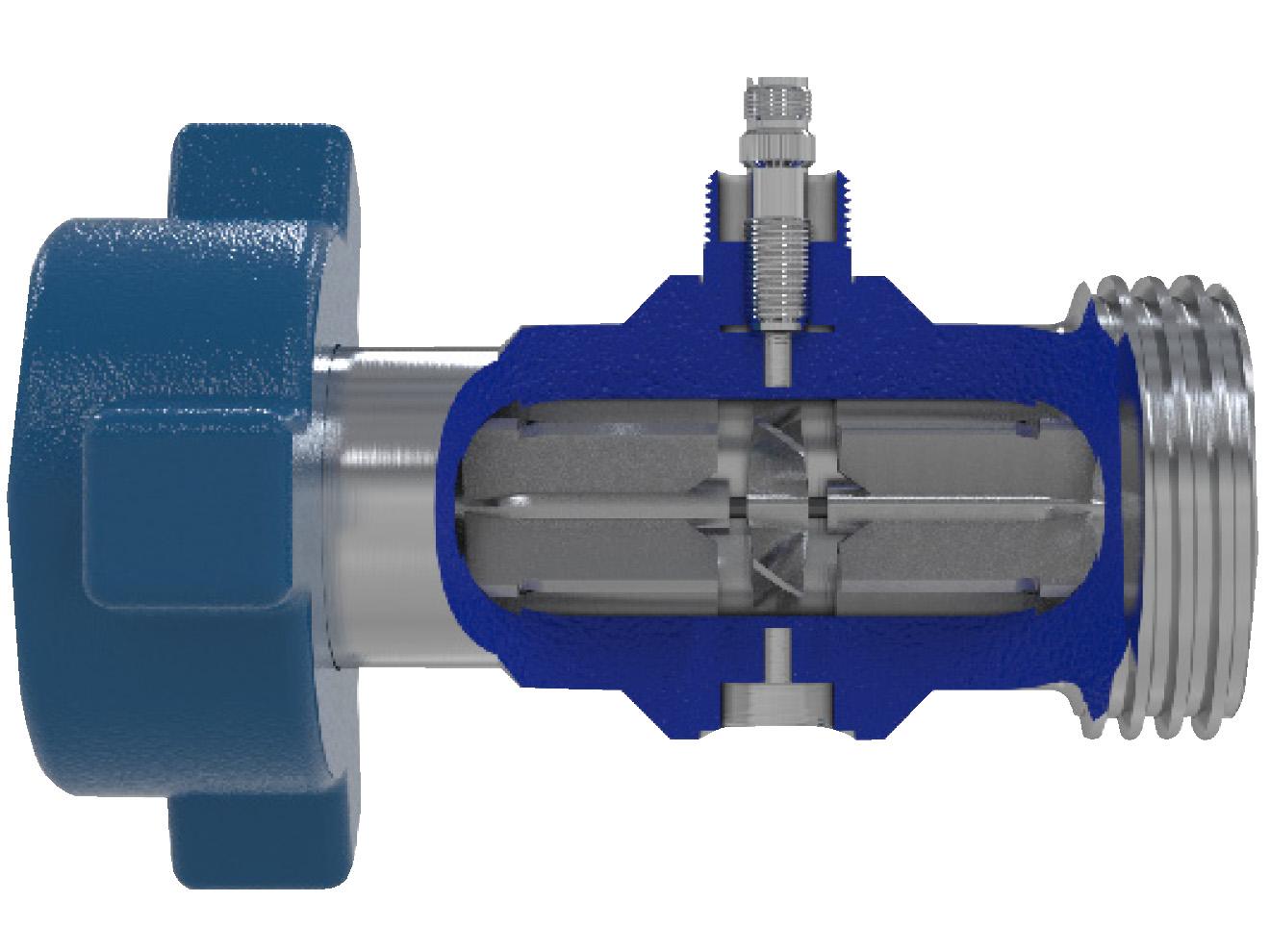

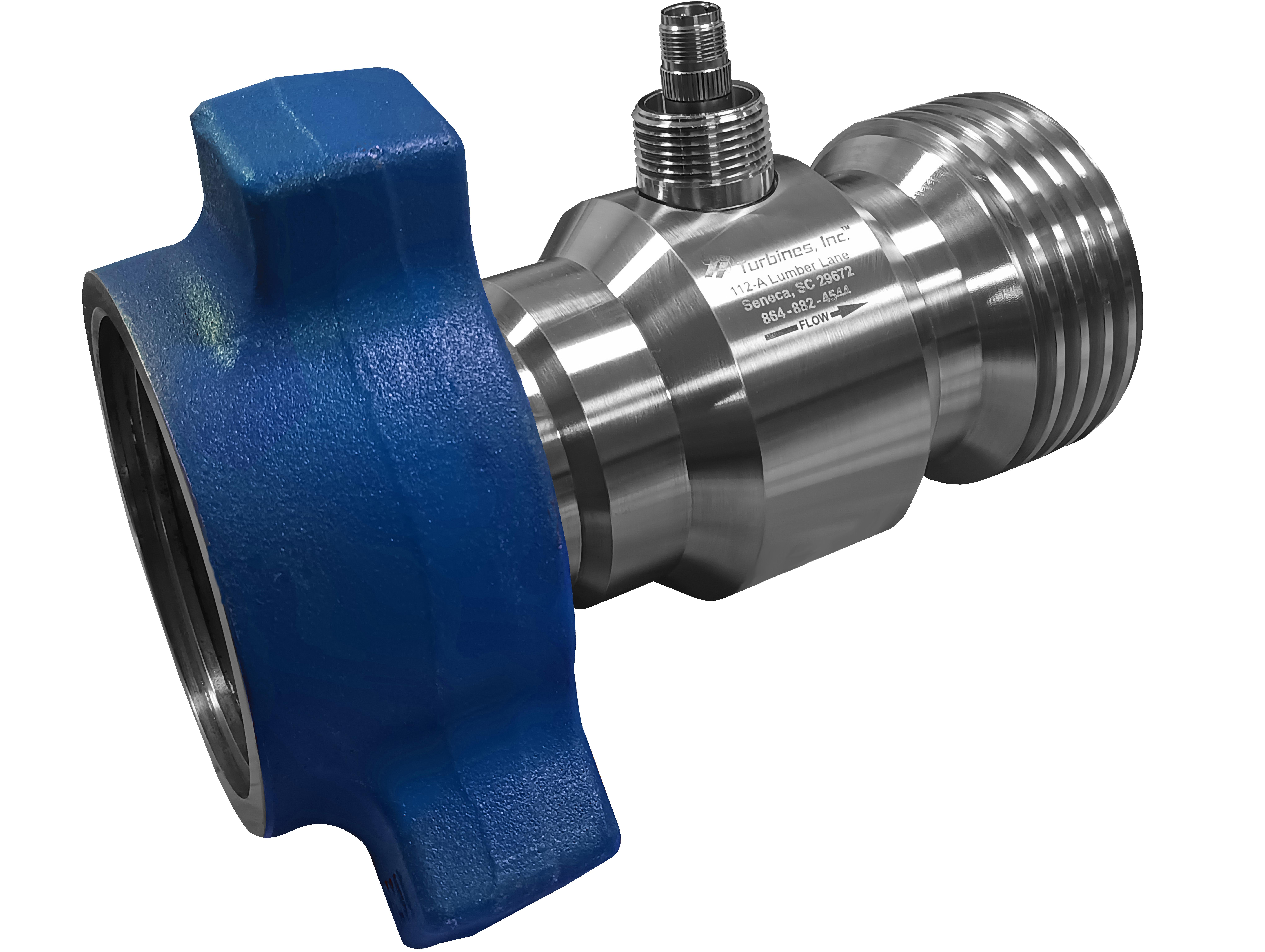

The Turbines, Inc. HP Series high pressure liquid turbine flow meter is designed to deliver ±1% linearity and ±0.10% repeatability over the flow range, with operating temperatures from -100 to 250°F. This series offers flow rate ranges from 15 to 600gpm. Constructed with premium materials, including an A286 stainless steel meter body, CD4MCu rotor, and tungsten carbide rotor shaft and bearings, the HP Series flow meter offers exceptional durability and corrosion resistance.

The rotor supports are made from 316 stainless steel, ensuring reliable performance under challenging operating conditions. Connections are available in Thread x WingNut or Thread x Thread configurations for ease of integration into existing systems. All flow meters are CRN certified, ISO 9001 compliant, and calibrated with NIST traceability for assured accuracy and quality.

Applications include oil and gas processing, chemical processing, water and wastewater management, power generation, and industrial manufacturing. The HP Series is suitable for demanding high-pressure applications where accuracy and durability are critical.
