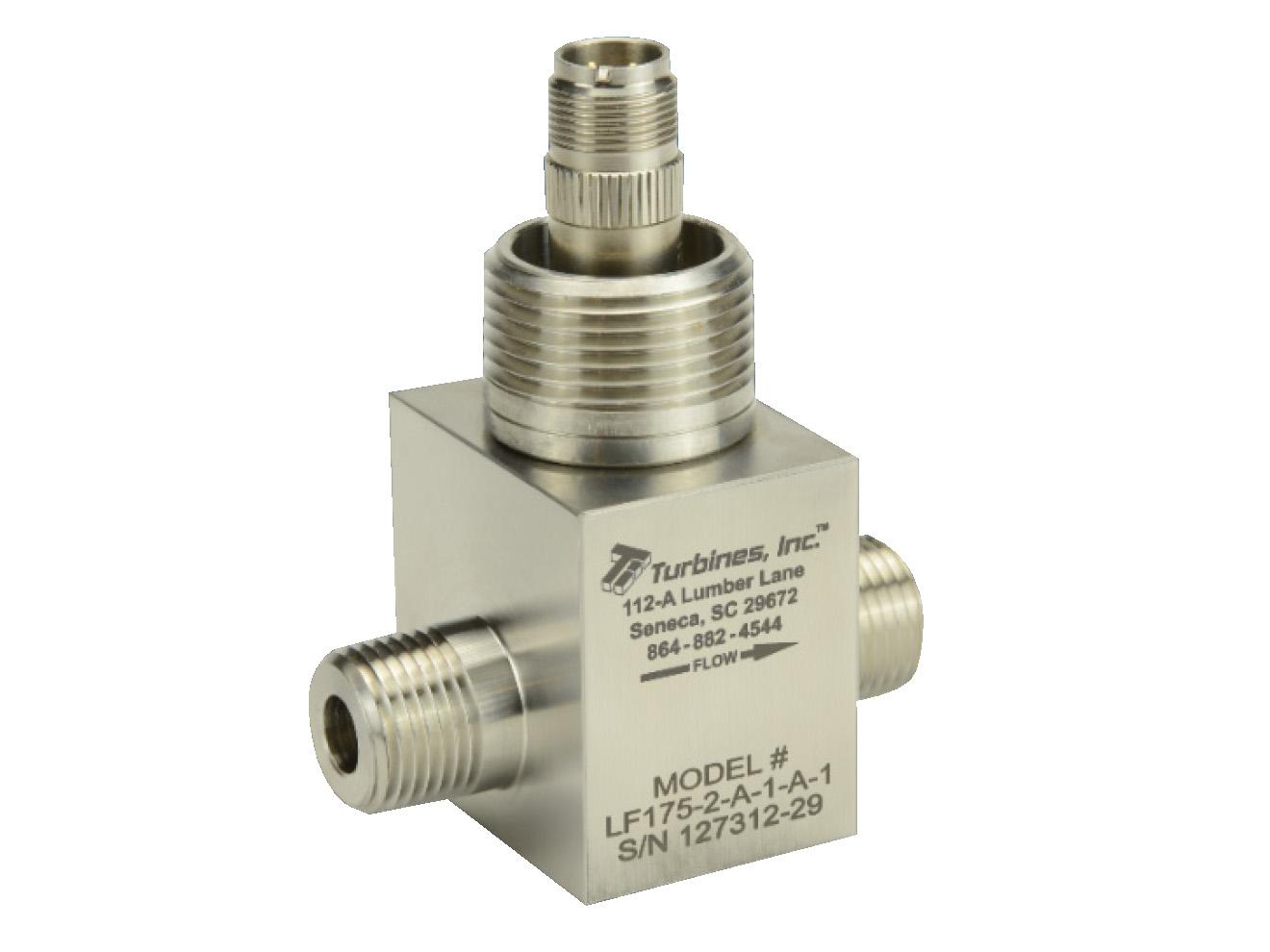

The Turbines, Inc. LF Series low flow turbine meter is engineered with durable 316 stainless steel construction. These flow meters operate at pressures up to 5,000psi and deliver flow measurements from 0.007 to 3gpm. The repeatability of ±0.25% ensures consistent performance. The turbine flow meter features components such as 17-4 PH rotors, and 440C stainless steel ball bearings with self-lubricating retainers. This series is also available with Nickel 200 and Duplex stainless steel material options upon request.

With an operating temperature range from -70°F to 525°F (with optional coils), these meters can handle extreme conditions while maintaining reliable functionality. The LF Series comes with NPT connections, with 37° AN flare connections available upon request. The meters are ISO 9001 certified and undergo NIST traceable calibration to ensure the highest level of quality and accuracy.

Applications include chemical processing, oil and gas operations, water and wastewater management, aerospace and defense systems, food and beverage production, pharmaceutical and medical manufacturing, and energy and power generation.
