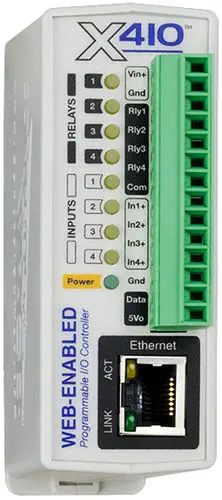

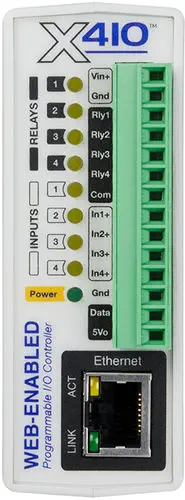

The Xytronix X-410 (marketed under the ControlByWeb brand) is a 4-I programmable controller and Ethernet I/O module that redefines edge automation for the Industrial Internet of Things. It stands as one of the company's most versatile logic controllers, combining a practical set of onboard I/O with an exceptionally accessible programming paradigm. Housed in a rugged, DIN-rail-mountable Lexan enclosure, the X-410 is purpose-built for demanding environments, from remote pump stations and gate access points to industrial freezer monitoring and network equipment reboot applications. Its core philosophy is to deliver powerful, network-enabled control without the overhead of traditional PLC software, cloud subscriptions, or complex ladder logic programming.

The most significant differentiator of the X-410 is its built-in Task Builder, a no-code logic engine accessible entirely through the device's embedded web server. Using simple drop-down menus and an intuitive "if-this-then-that" workflow, users can create up to 50 conditional tasks, 50 scheduled tasks, 16 automatic reboot tasks, and 20 override schedules. This allows for sophisticated automation—such as "if temperature exceeds 80°F, turn on exhaust fan and send email alert"—without writing a single line of code. For advanced users requiring custom functionality beyond the Task Builder's scope, the X-410 also includes a BASIC interpreter, providing the flexibility of a traditional scripting environment while maintaining the accessibility of the core platform. All configuration, monitoring, and firmware updates are performed via a standard web browser or the CBW Mobile app.

On the hardware side, the X-410 provides 4 optically isolated digital inputs capable of monitoring dry contacts, reading frequency (up to 200Hz), or functioning as scalable counters. Four SPST electromechanical relays (rated 1A at 28VAC/24VDC) provide isolated control outputs for low-voltage loads such as lights, locks, motor contactors, or solid-state relays. A defining feature is the integrated 1-Wire bus, which supports up to 16 digital temperature, humidity, or ultrasonic sensors—allowing the X-410 to function as a compact environmental monitoring station without additional analog input modules. The controller operates from 9-28VDC (with PoE options on select models) and carries a wide operating temperature rating from -40°F to 150°F (-40°C to 65.5°C).

Connectivity extends far beyond a single device. The X-410 supports peer-to-peer communication across the entire ControlByWeb ecosystem. Using P2P networking, multiple X-400 series modules can share I/O states instantaneously, allowing a digital input on one module to trigger a relay on another as if they were directly wired. The system can scale to encompass up to 32 remote modules and 100 total I/O points. Integration with higher-level systems is comprehensive, with native support for Modbus TCP/IP, SNMP, MQTT, and an Open REST API. Built-in data logging stores up to 8,448 entries in nonvolatile flash memory, with options to graph logged data or automatically export logs via FTP or email. A real-time clock with NTP synchronization ensures accurate time-stamping for all events and scheduled tasks.

The X-410 occupies a unique and powerful position in the automation landscape. It is not a traditional PLC, yet it delivers much of the same control capability with dramatically lower complexity and cost. It is ideal for system integrators, OEMs, and facility managers who need to quickly deploy reliable remote monitoring and control without specialized software, recurring fees, or extensive programming expertise.
