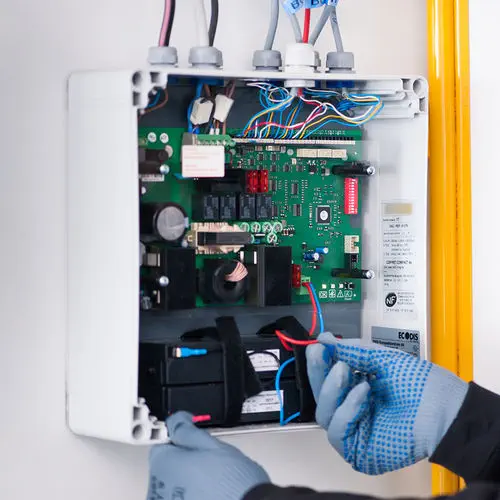

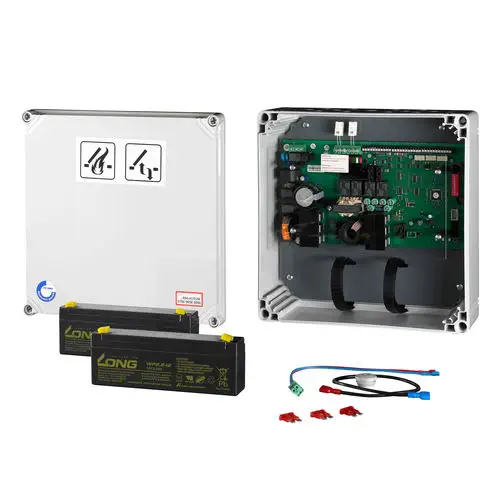

The RWA 4 A from Kingspan STG GmbH is a compact, TÜV-tested control panel for smoke and heat exhaust ventilation (SHEV) systems, certified to EN 12101-10. It drives 24 V DC actuator motors at a nominal 4 A output and includes an integrated emergency battery pack with charger that maintains 72 hours of operational readiness during mains failure — delivering 4 A for 180 seconds when triggered by automatic detectors or manual call points. Daily ventilation is built in, with two dedicated ventilation groups alongside the primary SHE group.

How does parallel and cascade operation work?

The RWA 4 A natively supports parallel operation of connected drives and, via DIP-switch configuration, can cascade up to 8 control panels in a master/slave arrangement. This allows a single trigger — from an automatic smoke detector or a break-glass manual call point — to coordinate ventilation opening across multiple zones. Each panel in the cascade maintains its own battery backup and drive circuits, so a fault in one zone does not compromise emergency operation elsewhere. The cascade architecture scales SHEV coverage from a single stairwell to a multi-zone commercial building without requiring a larger centralised panel.

What monitoring and service features are built in?

The RWA 4 A continuously monitors detector circuits (automatic smoke/heat detectors and manual call points), emergency battery condition, and connected 24 V DC drives for open-circuit and short-circuit faults. An integrated service timer tracks operating hours and prompts scheduled maintenance. The PC service port allows advanced parameter configuration — including DIP-switch special functions, ventilation timings, and cascade addressing — via a laptop interface. Line monitoring of drive cabling uses diode-based supervision, and motor circuits are individually fused at FKS 10 A with screw terminals accepting up to 6 mm² conductors.
