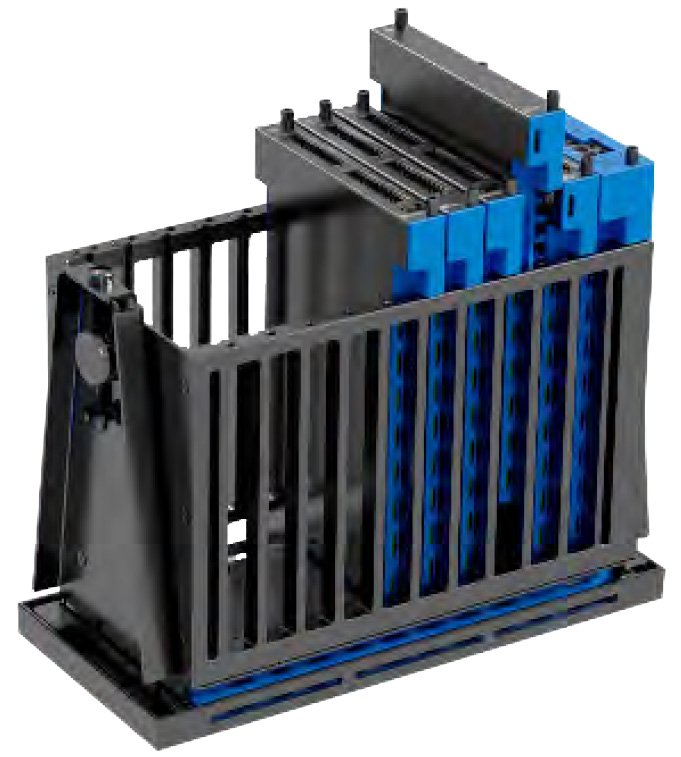

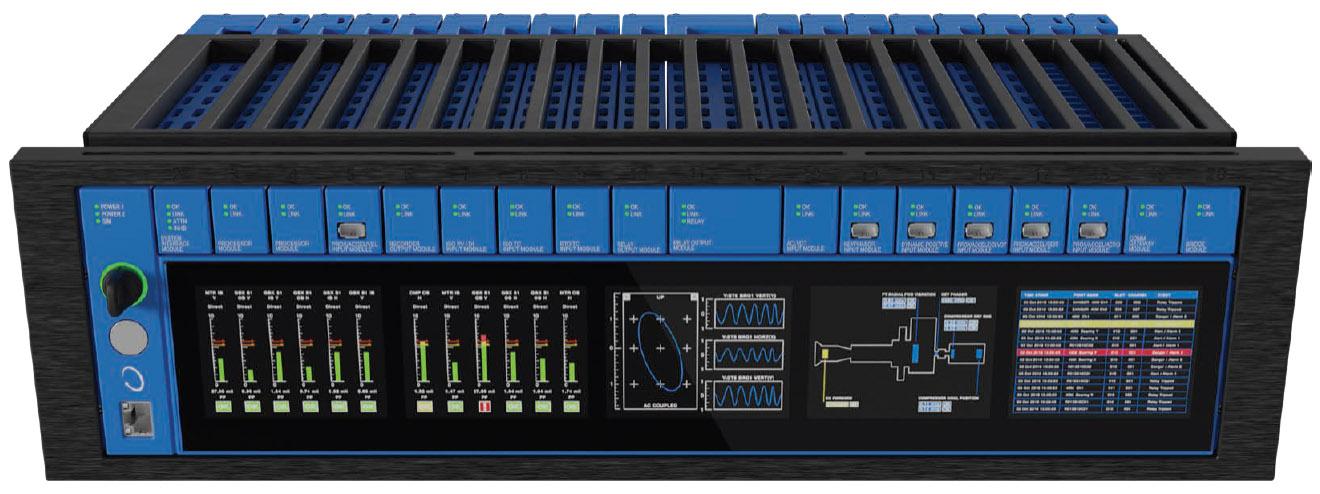

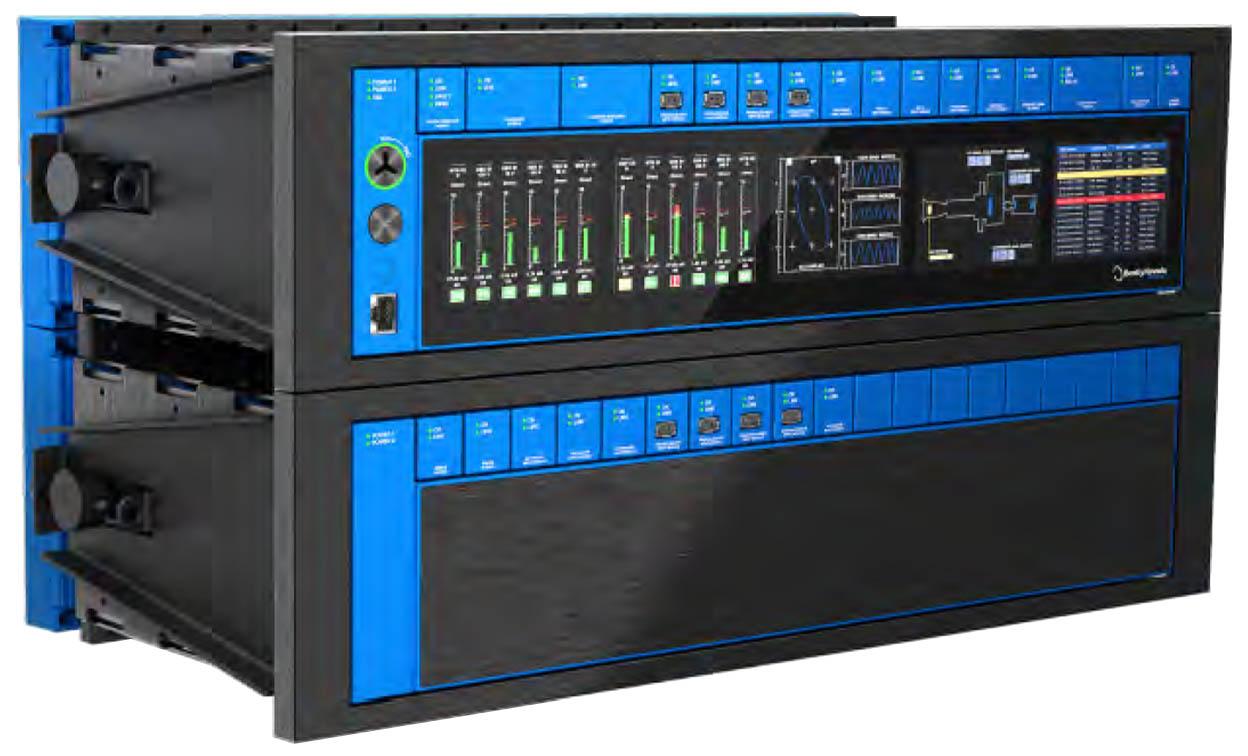

The Bently Nevada Orbit 60R/CHA system chassis can be deployed flexibly with a public facing side (for rack or panel mounts) and a utility side (for wiring connections and bulkhead mounts). Modules are inserted into the chassis and all wiring connections made from the utility side. The public side of the chassis is provisioned for status LEDs, configuration ports, config/run key, and reset button. The chassis are available in three types: 3U 12in 10 slot, 3U 19in 19 slot, and 6U 19in 28 slot.

Bently Nevada's Xtend™ technology allows you to connect multiple chassis with a virtual, digital backplane. The result is the Orbit 60 can be deployed as not just a conventional rack, but as a distributed rack where I/O is located near the machine to dramatically reduce wiring costs, linked to the master rack and its common controllers, communication gateways, and displays via high speed communications through simplex or redundant bridging modules in each chassis. Xtend™ technology allows multiple chassis and up to 80 dynamic channels to be connected, with chassis located up to 2km (1.25mi) from one another.
