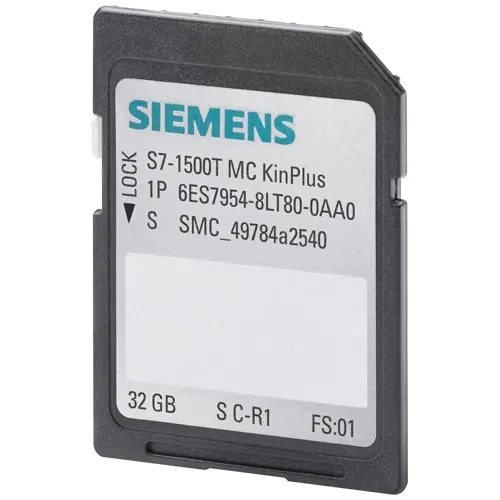

The Siemens SIMATIC S7-1500 Memory Card 6ES7954-8LT80-0AA0 is a 32 GB industrial-grade NAND flash storage card designed specifically for SIMATIC S7-1500 Technology CPUs. It provides the program and data storage capacity required by the S7-1518T, S7-1518TF, and S7-1507D TF controllers when running the S7-1500T KinPlus motion control software — Siemens advanced platform for complex multi-axis kinematics, interpolation, and coordinated motion applications.

Which CPUs Require This Memory Card?

The 32 GB card is purpose-built for SIMATIC S7-1500 Technology CPUs: the S7-1518T and S7-1518TF (standard and failsafe Technology CPUs) and the S7-1507D TF (distributed Technology CPU). These controllers execute the KinPlus motion control runtime, which manages complex kinematic transformations — including SCARA, delta, articulated arm, and gantry configurations — along with multi-axis interpolation. The substantial 32 GB capacity accommodates the large motion control firmware, kinematic models, cam tables, and application programs associated with these sophisticated motion systems. It is not required for standard S7-1500 CPUs (e.g., S7-1511 through S7-1517), which use smaller-capacity memory cards.

What Is S7-1500T KinPlus?

S7-1500T KinPlus extends the standard S7-1500 motion control capabilities with advanced kinematic functions. It supports complex mechanical configurations including parallel kinematics (delta robots, SCARA), serial kinematics (articulated arm robots), and custom kinematic chains. KinPlus handles coordinate transformations, path interpolation in Cartesian space, and synchronized multi-axis movements. Applications include pick-and-place robots, packaging machinery, CNC-style machining, and assembly automation. The 32 GB memory card provides the necessary storage headroom for these compute-intensive motion programs and their associated data sets.

Technical Specifications

The memory card uses 3.3 V NAND flash technology in Siemens proprietary format — standard SD or CF cards cannot substitute. It is a plug-in module designed for the memory card slot on the front of S7-1500 Technology CPUs. The card stores the complete CPU program, firmware, technology objects, cam data, and recipes. Approximate weight is 30 g. The card is RoHS compliant and SVHC-free. Country of origin is Germany. For standard S7-1500 applications not requiring KinPlus, a smaller 2 GB variant (6ES7954-8LP80-0AA0) is available for Technology CPUs, and standard 4-32 MB cards serve the standard CPU range.

Frequently Asked Questions

Can this memory card be used in a standard S7-1500 CPU?

While the card physically fits the memory card slot of any S7-1500 CPU, it is specifically designed and sized for S7-1518T/TF and S7-1507D TF running KinPlus. Standard S7-1500 CPUs (S7-1511 through S7-1517) do not require this capacity and typically use 4 MB to 32 MB cards. Using a 32 GB card in a standard CPU would not provide additional functionality beyond what a standard-capacity card offers.

Is this a standard SD card that can be purchased from any supplier?

No. SIMATIC S7 memory cards use a Siemens-proprietary format and firmware. Standard commercial SD or CF cards are not compatible and will not be recognized by the CPU. Only genuine Siemens SIMATIC memory cards should be used to ensure reliable operation and data integrity in industrial environments.

Does the memory card retain data during power loss?

Yes. The NAND flash technology provides non-volatile storage, meaning all program data, firmware, and configuration are retained indefinitely without power. The card can be removed from one CPU and inserted into a replacement CPU to transfer the complete project without needing to download from TIA Portal.
