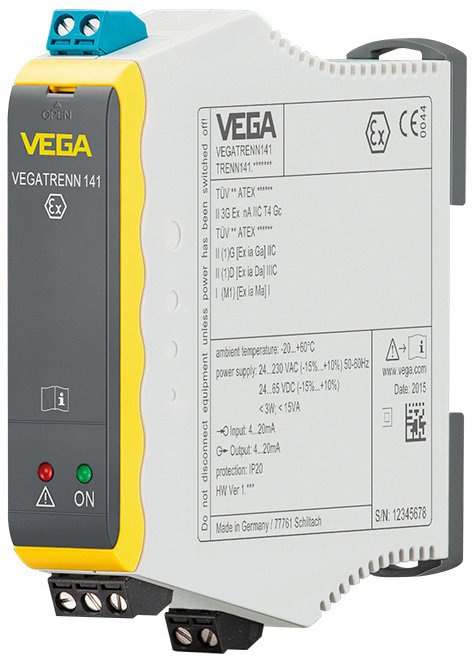

Single Channel Ex Separator - 4-20mA/HART | VEGA VEGATRENN 141

1 / 5

Product Specifications

Manufacturer: VEGA
Model Number: VEGATRENN 141
Type: Single Channel Separator
Power Supply: 24-230VAC (50/60Hz) or 24-65VDC
Input: 4-20mA/HART (active, powers sensor)
Output: 4-20mA/HART
Documents: Product Manual, Product Specs

Product Description

The VEGA VEGATRENN 141 single channel separator is used for galvanic separation, intrinsically safe power supply as well as the signal transmission of Ex approved 4 to 20mA/HART sensors in hazardous areas. The separate voltage supply ensures a reliable measured value transmission.

The VEGATRENN 141 is used in all industries, also with Ex applications. It is suitable for bidirectional transmission of HART signals. The HART signal can be tapped via the front-mounted HART communication sockets or the terminals. The total transmissibility of HART signals allows unrestricted access to the sensor settings.

Applications: Filter monitoring, digester, gas pipeline, gas storage tank.
