Product Specifications
Manufacturer: VEGA
Model Number: VEGAMET 341
Product Type: Built-in Process Controller
Input: 4 to 20mA sensor input (active or passive selectable)
Output: 0/4 to 20mA current output, 3 relay outputs
Communication: Bluetooth 5.0 for smartphone commissioning
Enclosure Rating: IP20 front, IP40 instrument
Protection: Intrinsic safety "i" explosion protection
Documents: Product Manual, Product Specs
Product Description

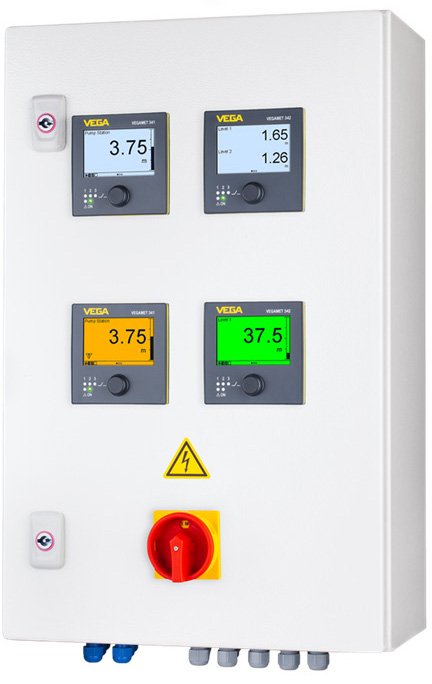

The VEGA VEGAMET 341 built-in controller feeds the connected 4 to 20mA sensor, processes the measured values, and displays them. The installation housing is ideal for mounting in the control panel.

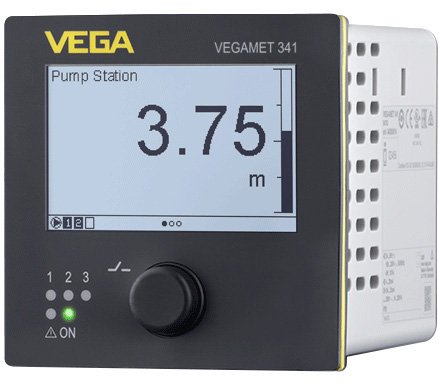

The VEGAMET 341 integrates a large display for data visualization as well as a turn/push button for easy adjustment on site. The VEGAMET 341 allows limit values to be reliably monitored and relays to be switched, for example, for overfill protection according to WHG. The multifunctional instrument enables pump switching, and flow measurement in open flumes or on weirs and summation. The VEGAMET 341 is suitable for many industrial sectors as well as plant manufacturers.
Built-in Process Controller - 4-20mA Panel Mount | VEGA VEGAMET 341
Product Specifications
Manufacturer: VEGA
Model Number: VEGAMET 341
Product Type: Built-in Process Controller
Input: 4 to 20mA sensor input (active or passive selectable)
Output: 0/4 to 20mA current output, 3 relay outputs
Communication: Bluetooth 5.0 for smartphone commissioning
Enclosure Rating: IP20 front, IP40 instrument
Protection: Intrinsic safety "i" explosion protection
Documents: Product Manual, Product Specs
