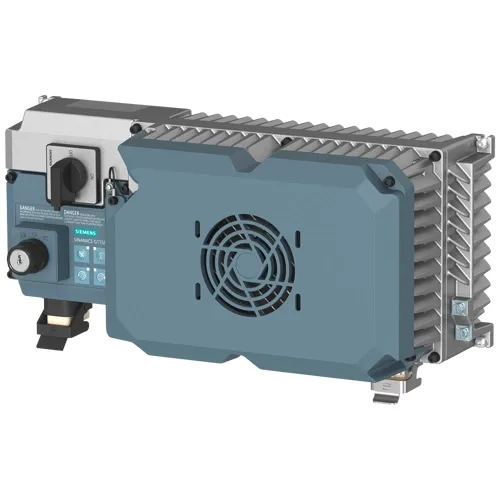

7.5 kW FSC with 1XE gland entry and AB0 I/O — the workhorse configuration for high-power distributed drives in hardwired control architectures. Same power electronics and mechanical package as the AF0 variant, but without the PROFINET port: the drive receives speed and direction commands over digital inputs from a central PLC or relay logic.

The 1XE gland entry provides IP66 sealing through threaded cable glands rather than push-pull connectors. In wet environments or applications with frequent thermal cycling, the glanded connection maintains seal integrity better than connector-based alternatives. The C2 line filter is integrated.

At 245.5 W loss, ensure adequate clearance around the FSC heat sink for fan airflow. The 180 V DC brake transistor handles the holding brake on large geared motors directly — no external brake contactor or rectifier needed.
