Product Specifications
- Manufacturer
- HOBO Data Loggers by Onset
- Product Number
- UA-004-64
- Type
- 3-Axis Motion Data Logger
- Acceleration Range
- ±3 G
- Accuracy
- ±2.5% FS at 25°C
- Measurement Modes
- 1, 2, or 3 axes
- Sample Rate
- Up to 100 samples per second
- Memory
- 64,000 acceleration readings; 32,000 tilt readings; 21,333 motion readings
- Water Depth Rating
- 30m (100ft) at -20 to 20°C
- Readout Time
- Less than 30 seconds
- Housing
- Waterproof for wet or underwater use
- Documents
- Product Manual, Product Specs
Product Description

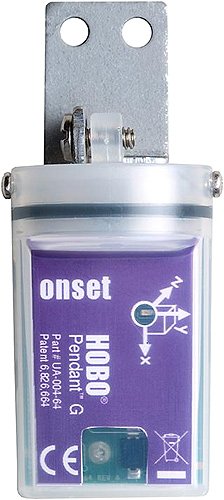

The HOBO Pendant G Data Logger measures 3-dimensional motion, such as sports activity or medical therapy compliance. With this logger, users can measure acceleration and angular displacement in 1, 2 or 3 axes. The Pendant G is for use indoors, outdoors and under water.
The logger features ±3 G range with ±2.5% FS accuracy at 25°C. It has a waterproof housing for wet or underwater use and can sample up to 100 samples per second. Memory configuration varies by measurement mode: 64,000 for acceleration, 32,000 for tilt, or 21,333 for motion. Water-depth rating is 100ft (30m) from -4 to 68°F (-20 to 20°C). Data readout takes less than 30 seconds.
HOBO Data Loggers by Onset
Compare
Pendant G Motion Logger - 3-Axis, ±3G, Waterproof | HOBO UA-004-64
Measures acceleration and angular displacement
MPN/Series: UA-004-64
Product Specifications
- Manufacturer
- HOBO Data Loggers by Onset
- Product Number
- UA-004-64
- Type
- 3-Axis Motion Data Logger
- Acceleration Range
- ±3 G
- Accuracy
- ±2.5% FS at 25°C
- Measurement Modes
- 1, 2, or 3 axes
- Sample Rate
- Up to 100 samples per second
- Memory
- 64,000 acceleration readings; 32,000 tilt readings; 21,333 motion readings
- Water Depth Rating
- 30m (100ft) at -20 to 20°C
- Readout Time
- Less than 30 seconds
- Housing
- Waterproof for wet or underwater use
- Documents
- Product Manual, Product Specs
