Product Specifications
- Manufacturer
- HOBO Data Loggers by Onset
- Product Number
- KIT-D-U20-01
- Type
- Water Level Data Logger Deluxe Kit
- Kit Includes
- U20-001-01 (30 ft range) logger, U20-001-04 (13 ft range) for barometric pressure, U-DTW-1 waterproof shuttle with 5 couplers, U20-CASE-1 carrying case, HOBOware Pro software
- Pressure Sensor Range (U20-001-01)
- 0 to 207 kPa (0 to 30 psia)
- Water Level Accuracy
- ±0.05% FS typical (0.5 cm water)
- Temperature Range
- -20°C to +50°C (-4°F to +122°F)
- Temperature Accuracy
- ±0.37°C at 20°C
- Memory
- 64 KB (approx. 21,700 pressure and temperature samples)
- Battery
- 2/3 AA, 3.6V Lithium, factory-replaceable
- Battery Life
- 5 years (1 minute or greater logging interval)
- Wetted Materials
- 316 stainless steel, ceramic sensor, Viton o-rings, acetyl cap
- Environmental Rating
- IP68
- Documents
- Product Manual, Product Specs
Product Description
The HOBO Water Level Data Logger Deluxe Kit combines high accuracy water level measurements with out-of-the-box convenience. This money-saving kit includes everything needed to start logging right away. It is ideal for monitoring water levels and temperatures in wells, streams, lakes and freshwater wetlands, as well as barometric pressure.

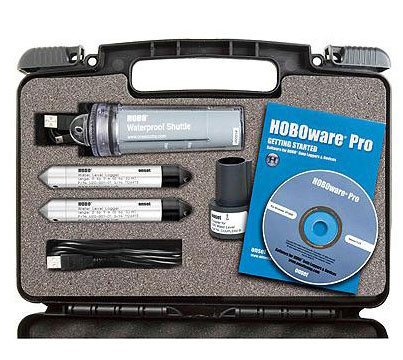

The kit includes a U20-001-01 logger (30 ft range), a U20-001-04 logger (13 ft range) for barometric pressure compensation, a waterproof shuttle with coupler, a carrying case, and HOBOware Pro software.
The HOBO U20 Water Level Data Logger features high accuracy at a great price and ease-of-use, with no cumbersome vent tubes or desiccants to maintain. The durable ceramic pressure sensor provides ±0.05% FS typical accuracy. The logger is powered by a 2/3 AA lithium battery with 5-year life and has 64 KB memory storing approximately 21,700 pressure and temperature samples. The 316 stainless steel housing is rated IP68 for continuous submersion. For saltwater deployments, such as brackish wetlands and tidal areas, the HOBO U20 Titanium version is available.
