Product Specifications
- Manufacturer
- MadgeTech
- Product Number
- MICROTEMP100
- Type
- High Temperature Data Logger
- Temperature Range
- -40°C to +100°C (-40°F to +212°F)
- Memory
- 32,767 readings
- Reading Rate
- 1 reading every 2 seconds to 1 every 12 hours
- Water Depth Rating
- Submersible up to 70m (230ft)
- Alarms
- Programmable high/low limits with LED indicator
- Dimensions
- 66 mm x 18 mm (2.6 x 0.7 in)
- Calibration
- ISO17025 accredited calibration certificate included
- Software
- MadgeTech 4 Software with Pasteurization Units (PU) calculation
- Documents
- Product Manual, Product Specs
Product Description

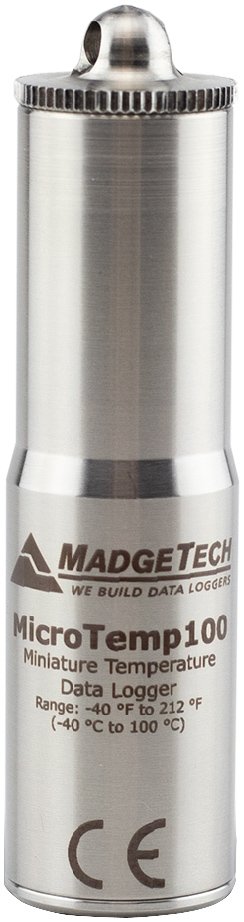

The MadgeTech MICROTEMP100 Data Logger is built to withstand temperatures up to 212°F (100°C). Only 2.6 inches (66 mm) tall and 0.7 inches (18 mm) in diameter, this data logger can easily fit into the smallest spaces. The MicroTemp100 measures and records temperatures ranging from -40 to 212°F (-40 to 100°C) and is submersible up to 230 feet (70 m).
The MicroTemp100 has a storage capacity of 32,767 readings and is equipped with an LED alarm to warn when user-specified high/low temperature limits are breached.
The MicroTemp100 is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units, including Pasteurization Units (PU). An ISO17025 accredited calibration certificate is included with each logger.
Miniature High Temp Logger - -40-100°C, Waterproof | MadgeTech MICROTEMP100
Product Specifications
- Manufacturer
- MadgeTech
- Product Number
- MICROTEMP100
- Type
- High Temperature Data Logger
- Temperature Range
- -40°C to +100°C (-40°F to +212°F)
- Memory
- 32,767 readings
- Reading Rate
- 1 reading every 2 seconds to 1 every 12 hours
- Water Depth Rating
- Submersible up to 70m (230ft)
- Alarms
- Programmable high/low limits with LED indicator
- Dimensions
- 66 mm x 18 mm (2.6 x 0.7 in)
- Calibration
- ISO17025 accredited calibration certificate included
- Software
- MadgeTech 4 Software with Pasteurization Units (PU) calculation
- Documents
- Product Manual, Product Specs
MadgeTech MicroRHTemp
Ultra-small size for tight spaces, NIST traceable
MadgeTech pHTemp2000
pH/ORP/ISE logger with temp
MadgeTech RFVolt2000A
Wireless two-way, programmable engineering units
MadgeTech RHTemp101A
±0.05°C accuracy, dew point, water vapor concentration
MadgeTech TCTemp2000
Internal sensor + external thermocouple, 9V/AC power
MadgeTech RFTemp2000A
Wireless two-way, audible/LED alarms
MadgeTech LyoTemp
Ultra-low temp, hermetically sealed thermistor, NIST certified
MadgeTech VTMS
RFTCTemp2000A with glycol bottle, email/text alerts

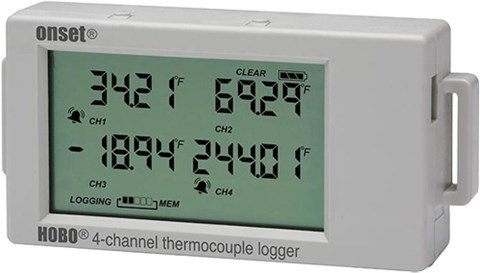

HOBO Data Loggers by Onset UX120 Series
