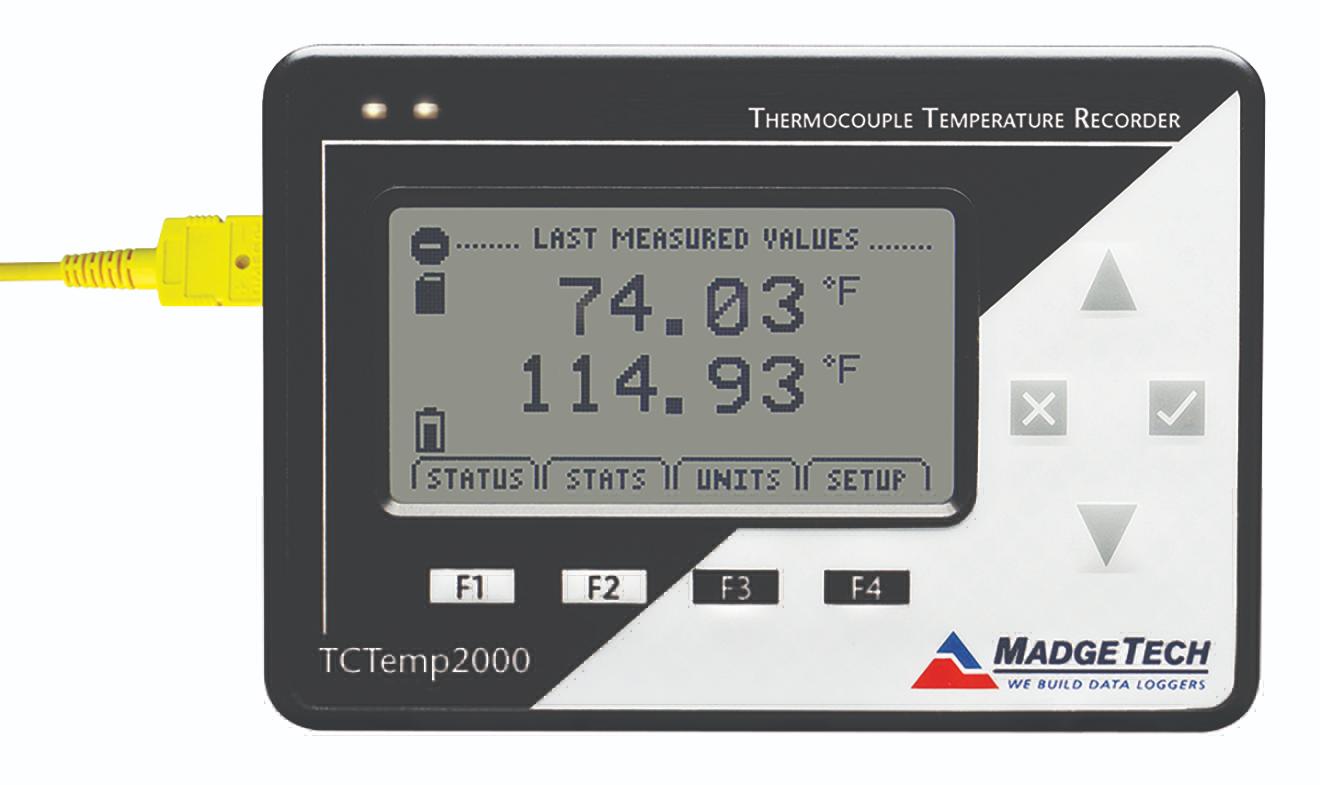

The MadgeTech TCTemp2000 temperature data logger is a battery powered thermocouple data logger with an LCD display. The TCTemp2000 has an internal temperature sensor and one external input for J, K, T, E, R, S, B and N type thermocouples.

The 8-button keypad and large LCD provide convenient access to current data and recorder setup. Additionally, the TCTemp2000 displays memory and battery levels, external power status, and sampling and recording status on the LCD.

On-screen data available includes: statistics (min, max, average); recording status (start, stop and recording rate); display options (units, text size); and calibration information (date calibrated, date for recalibration). Statistics can be cleared at any time during logging.

The large memory capacity will hold 131,071 readings per channel. The non-volatile memory will retain recorded data, even if AC and battery power are lost. The TCTemp2000 runs on a 9V battery with a typical battery life of 1 year at a 1 min reading rate with the display off. With continuous LCD and no backlight usage, the average battery life is 30 days. For power savings, both the LCD and backlight have configurable auto-off options. Those wanting to keep the LCD display and backlight continuously active need only to connect the unit to an AC power supply, keeping the 9V battery connected as a back-up.

NIST traceable calibration is available for users needing to meet regulatory requirements.

Applications

• HVAC Applications
• Oven Profiling
• HACCP program implementation
• Process verification and validation
• Warehouse monitoring
• Museum and Laboratory monitoring
• Medical/Pharmaceutical
• Environmental studies
• Food storage
• Live cargo transport
• Concrete curing/construction
