Product Specifications
- Manufacturer
- ScanSense
- Model Number
- IsoPod
- Product Type
- Subsea Pressure Transmitter
- Accuracy
- <0.5% FS
- Output
- Dual 4-20mA (redundant option)
- Response Time
- <5ms to 63% of final output value
- Supply Voltage
- 10 to 30 VDC
- Design Life
- 30 years
- Compliance
- ISO 13628-6
- Documents
- Product Specs (2 Files)
Product Description

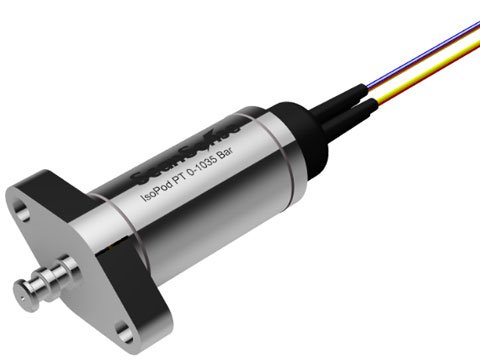

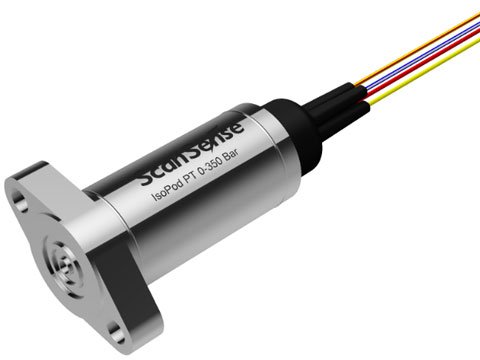

The ScanSense IsoPod Subsea Pressure Transmitter is digitally calibrated and temperature compensated with two channels with an analogue 4-20mA output signal. The IsoPod PT features fast response, high accuracy and long life.
Key features include dual/redundant signal option, <0.5% FS accuracy, response time <5ms to 63% of final output value, 10 to 30 VDC supply voltage, inverted polarity and transient protection, EB welded diaphragm, 30-years design life, and ISO 13628-6 compliance.
