Product Specifications
- Brand
- AURORA Konrad G. Schulz GmbH & Co. KG
- Part Number
- NEO2B
- Type
- Blower Control Panel
- Control Mode
- 3-Speed Blower (Low/Medium/High), Temperature Rotary Knob
- Switch Options
- Up to 2 Rocker Switches (A/C Compressor, Recirculation)
- Power Supply
- 9-30 V DC (Ignition-Controlled)
- Max Blower Output
- 25 A
- Front Protection
- IP40
- Operating Temperature
- -40 to +85°C
- Application
- Off-Highway Vehicle Operator Cabins
Product Description

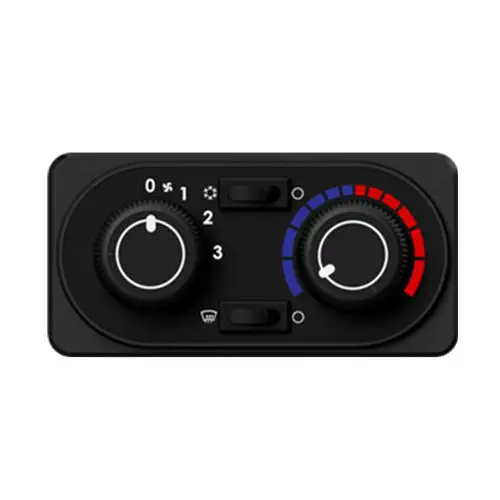

The NEO2B is a simplified, robust blower control panel manufactured by AURORA Konrad G. Schulz GmbH & Co. KG for off-highway vehicle operator cabins. It replaces complex HVAC interface panels with an intuitive two-knob layout — one for temperature, one for three-speed blower selection (Low/Medium/High) — plus up to two rocker switches for air conditioning compressor engagement and cabin air recirculation control. The panel is designed for heavy-duty operator environments where tactile controls and mechanical durability take priority over touchscreen sophistication.
What electrical interface does the NEO2B use?
The panel operates on 9-30 V DC vehicle power and requires an ignition input to enable operation. A 15-second hysteresis period after power-up prevents unintended mode changes during system stabilization. The blower output supports Low, Medium, and High speed selection via dedicated terminals, with a maximum blower output rating of 25 A. Auxiliary outputs for the A/C compressor clutch and coolant pump are rated at 5 A each.
What environmental conditions does the NEO2B withstand?
The front panel carries an IP40 protection rating (front side) — protected against solid objects over 1 mm, with no water protection, while the internal electronics are rated for continuous operation from -40 to +85°C — matching the full off-highway temperature envelope encountered by construction, agricultural, and mining machinery. The simplified mechanical interface with rotary knobs and rocker switches eliminates failure-prone touchscreens and membrane keypads, ensuring reliable cabin climate control under vibration, shock, and contamination exposure.
Resources & Documentation
