Product Specifications

Product Description

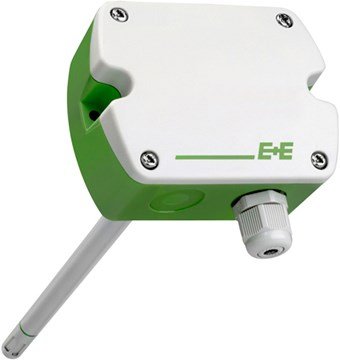

The E+E EE160 Humidity / Temperature Transmitter is a cost-effective, highly accurate, and reliable solution for measuring relative air humidity and temperature in HVAC applications. The enclosure minimizes installation costs and provides outstanding protection against contamination and condensation.

The EE160 features the HCT01 humidity/temperature sensor element with excellent long-term stability and resistance to pollutants. It provides measurement accuracy of ±2.5% RH and is available for wall or duct mounting with current, voltage, BACnet MS/TP, or Modbus RTU outputs.

E+E Elektronik
Compare

HVAC Humidity Temperature Transmitter - Cost Effective | E+E EE160

±2.5% RH, Pt1000, wall or duct mount, BACnet/Modbus
MPN/Series: EE160

Product Specifications

Manufacturer
E+E Elektronik
Model Number
EE160
Type
Humidity Transmitter
Humidity Range
10 to 95% RH
Accuracy
±2.5% RH at 20°C
Temperature Sensor
Pt1000
Outputs
Analog, BACnet MS/TP, Modbus RTU
Documents
Product Manual, Product Specs
