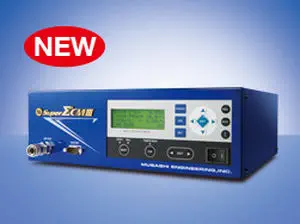

The Musashi Engineering SuperΣ CMIII is a fully digital air-pulse (time-pressure) dispensing controller that sets the industry standard for micro-volume fluid dispensing in semiconductor packaging, photonics assembly, and electronic component manufacturing. Two pressure-range variants — V2 (5–200 kPa) for ultra-low-viscosity fluids and V5 (30–500 kPa) for higher-viscosity pastes — cover applications from ~0.01 mg dot dispensing of optical adhesives to thermal grease and RTV silicone bead application.

How do the three Σ compensation functions maintain dispensing consistency?

Three automated correction systems compensate for variables that degrade shot-to-shot repeatability in conventional time-pressure dispensers. Automatic water-head difference compensation adjusts dispensing time as the fluid level drops in the syringe — the hydrostatic pressure change that would otherwise cause progressive volume reduction is mathematically canceled. Automatic drip prevention maintains an optimal vacuum level at the needle tip, preventing both fluid weeping (under-vacuum) and aeration (over-vacuum). The automatic low-fluid alarm precisely tracks remaining volume via dispense count and pressure trend analysis, alerting the operator before the syringe runs dry. Together with α-correction and δ-correction parameters, these functions maintain ±1% shot-weight consistency across the full syringe volume.

How does SuperΣ CMIII integrate into automated production lines?

The controller provides dedicated I/O for fully automated operation: input signals for remote dispense trigger, channel selection, mode switching, and channel preset/step advance; output signals for ready, dispensing complete, in-dispensing, valve alarm, error, and remaining volume alert. RS-232C serial communication with the free MuCOM for Super Σ CM PC software enables offline editing of all 100 channel parameters, which can then be downloaded to the controller. CE marking (Low Voltage and EMC Directives) and EU RoHS compliance support deployment in regulated electronics manufacturing environments.
