Product Specifications

Product Description

A mechanical pressure switch is a diaphragm over a snap-action microswitch: cheap, zero-power, but the set point drifts as the diaphragm fatigues, the contacts arc, and the only way to see the pressure is to bolt on a separate gauge. The DS 351 collapses that into one device - a ceramic cell, two independently adjustable switch points, and a 4-digit LED that reads the live pressure.

What does IO-Link buy over a pair of PNP outputs on a smart switch?

Diagnostics, not just switching. IO-Link V1.1 at 38.4 kbit/s delivers process data, temperature, switch counter and alarm history back to the PLC, so a pump that has short-cycled 10 million times shows up as a maintenance warning before it fails. Two channels cover most machines: CH1 can be IO-Link or a PNP/NPN contact, and CH2 switches between 4-20 mA, 0-10 V and a second PNP/NPN. The ceramic cell reads from vacuum to 600 bar in one part number, the 316L housing survives washdown to IP67, and the optional PVDF port opens the door to aggressive media - acids, chlorides, and process fluids where a stainless wetted part would not last.

BD|SENSORS
Compare

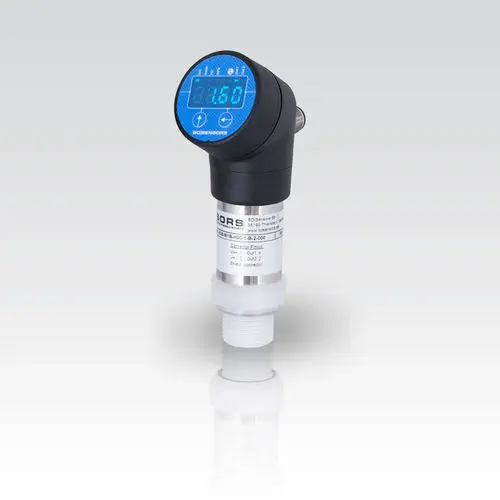

BD|SENSORS DS 351 IO-Link Pressure Switch: 0-600 bar, Ceramic, IP67

IO-Link, 2 switch points, 170 Hz
MPN/Series: DS 351

Product Specifications

Brand
BD|SENSORS GmbH
Part Number
DS 351
Type
Electronic Pressure Switch with IO-Link, Ceramic Sensor
Sensor
Al2O3 96% ceramic diaphragm; stainless 1.4404 (316L) housing
Range
Gauge -1 to 600 bar; absolute 0.6 to 600 bar
Accuracy
0.5% FSO per IEC 61298-2 (0.25% FSO BFSL option); repeatability +/-0.1% FSO
Outputs
CH1 IO-Link V1.1 / SIO (PNP/NPN); CH2 4-20 mA / 0-10 V / PNP-NPN switchable
Switching
Max 170 Hz, response time <12 ms, delay 0-50 s, 150 mA per contact
Supply
18-30 VDC; <50 mA current draw without contacts
Protection
IP67; M12x1 4-pin metal connector; vibration 20 g RMS, shock 500 g
Temperature
Medium -40 to 125 C; electronics -40 to 85 C
Life
100 million load cycles; 4-digit 7-segment LED, two-button VDMA menu
Application
Machine tools, pneumatic and hydraulic systems, water/wastewater/recycling; PVDF port option for aggressive media up to 60 bar
