Product Specifications

Product Description

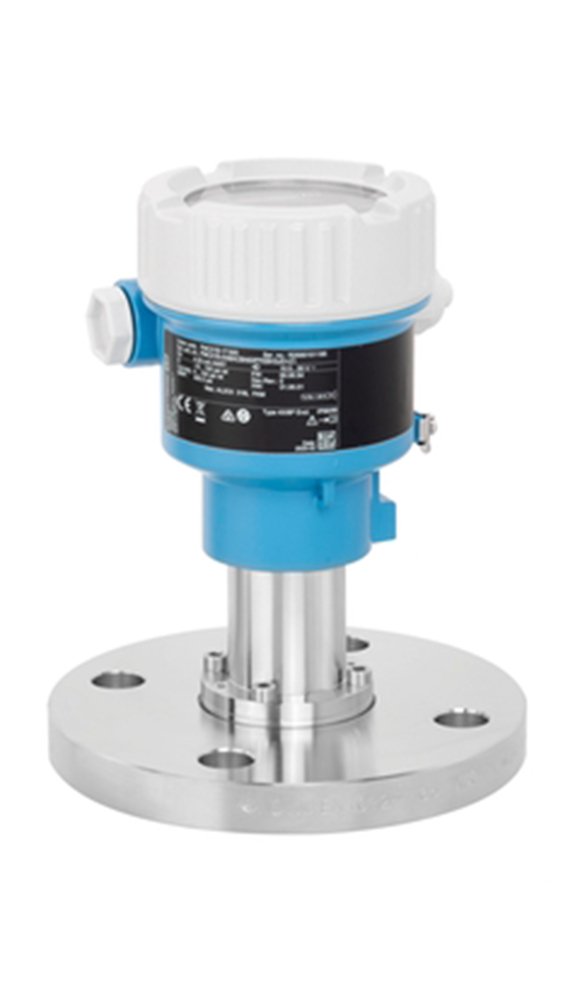

The E+H Cerabar PMC51B pressure transmitter is used for pressure, level, volume, or mass measurement in liquids and gases. The transmitter is designed for a high degree of system safety due to vacuum-proof ceramic membrane with integrated membrane breakage detection. The PMC51B software features intuitive wizards to guide through the commissioning and proof testing of the device, which minimizes operating errors. The transmitter can be remotely controlled via app on a mobile device and a secure Bluetooth connection.

Endress+Hauser
Compare

Ceramic Pressure Transmitter - Bluetooth | E+H Cerabar PMC51B

0.055% accuracy, Bluetooth
MPN/Series: PMC51B

Product Specifications

Brand
Endress+Hauser
Model Number
Cerabar PMC51B
Type
Pressure Transmitter
Pressure Range
1.5 to 600 psi (0.1 to 40 bar)
Accuracy
Standard 0.075%, Platinum 0.055%
Process Temperature
-40 to 212°F (-40 to 100°C)
Documents
Product Specs
Ceramic Pressure Transmitter - Bluetooth | E+H Cerabar PMC51B
