A thermocouple inserted only 50 mm into a 200°C stirred liquid bath can read 5°C low — and the error has nothing to do with the sensor. It is stem conduction. Every millimeter of sheath above the liquid surface bleeds heat from the sensing junction, and the shallower the immersion, the larger the deviation. Knowing how deep to immerse your sensor is the difference between a calibration you trust and one you cannot.
Why Immersion Depth Changes Your Reading
When a temperature sensor sits partially immersed, the exposed portion of the sheath acts as a heat pipe. Thermal energy flows from the sensing tip along the stem toward the cooler transmitter head or handle, where it dissipates into ambient air. This axial heat flow creates a temperature gradient along the stem — and the sensing element, sitting somewhere on that gradient, reads a temperature that is neither the bath temperature nor ambient, but somewhere in between.
The error is not subtle. A 6 mm stainless steel sheathed thermocouple immersed 80 mm into a 250°C bath can read 2°C to 8°C below true bath temperature depending on ambient conditions and sheath material. The error grows with:
- Larger stem diameter — more thermal mass, more axial conduction
- Higher bath-to-ambient temperature difference — steeper gradient drives faster heat loss
- Stainless steel sheaths — roughly 5× more thermally conductive than Inconel 600
- Still air above the bath surface — no convection to break the gradient
- Shorter immersion — the dominant variable you control
The Five-Diameter Rule — and When It Is Not Enough
The most widely cited guideline in industrial temperature calibration is the five-diameter rule: immerse the sensor at least five times its sheath diameter beyond the sensing element to reduce stem conduction error below roughly 0.1% of span. For a standard 6 mm probe, that means 30 mm of immersion past the tip.
But this rule assumes a well-stirred liquid bath with strong thermal coupling. In practice, it is a minimum, not a safe target. Several real-world conditions push the required immersion deeper:
- High-temperature baths above 400°C
- Radiation losses from the exposed sheath increase sharply. Five diameters becomes ten to twelve.
- Low-temperature baths below 0°C
- Frost formation on the exposed stem accelerates heat transfer into the sheath. Eight to ten diameters are recommended.
- Air or fluidized-bed calibrators
- Thermal coupling is 10–100× weaker than stirred liquid. Immersion must reach 15–20 diameters.
- Short-bodied sensors (e.g., RTDs with 3 mm insertion depth)
- The stem is too short to develop a stable gradient. Use a comparison calibration against a reference probe instead.
For most industrial probes in the 3–8 mm diameter range, the practical sweet spot is 100–150 mm of immersion — well above the five-diameter minimum, but achievable in any full-size calibration bath.
Liquid Bath vs. Dry Block: Why Immersion Depth Differs
The five-diameter discussion applies primarily to liquid calibration baths, where stirred fluid wraps around the sensor and provides uniform thermal coupling along the entire immersed length. In a dry block calibrator, the physics is different and less forgiving.
A dry block uses a heated metal well with interchangeable inserts. The sensor sits inside a bored hole, and heat transfers through a narrow air gap between the insert wall and the sensor sheath. Because air is a poor thermal conductor, the axial temperature gradient inside a dry block insert is much steeper than in a stirred bath. Even at the bottom of the well, the sensor may not reach true block temperature unless the fit is tight and immersion is deep.
For dry blocks, immerse the sensor at least 10–15 diameters, use the tightest insert that fits without forcing, and allow 15–20 minutes for stabilization. For critical calibrations, a liquid bath is the safer choice — the thermal coupling is simply better.

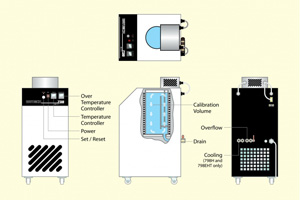

The Isotech Hydra 798 high-stability liquid bath provides 300 mm of working depth with ±0.001°C stability, making it suitable for probes up to 8 mm diameter where full immersion eliminates stem conduction entirely. For sub-zero work, the Isotech 459 Cryostat reaches −100°C with a 160 mm deep tank — enough for the extended immersion that cryogenic calibrations demand. The dual-purpose Isotech Calisto 4953 operates as both a dry block and a liquid bath from 25°C to 250°C, but be aware that immersion depth requirements change by a factor of two between the two modes — a common source of calibration error.
How to Verify Your Immersion Depth Is Sufficient
Rather than relying on rules of thumb alone, test your setup: while the sensor sits in a stable bath, raise it by 10 mm and watch the reading. If the indicated temperature shifts by more than the bath's stability specification, you are in the stem conduction zone and need deeper immersion. Repeat in 10 mm increments until the reading stabilizes — that depth is your minimum working immersion for that sensor in that bath.
What immersion depth does a 6 mm thermocouple need in a 250°C bath?
At least 80–100 mm past the sensing junction. The five-diameter rule gives 30 mm, but at 250°C the axial gradient is steep enough that 80 mm is the practical minimum for ±0.1°C uncertainty. If your bath has limited depth, switch to a thinner probe — a 3 mm sheath cuts the required immersion roughly in half because thermal cross-section scales with the square of diameter.
Does a calibration bath with a deeper tank give better accuracy?
It gives you more margin. A bath with 300 mm working depth — like the Isotech Hydra 798 — lets you fully immerse large-diameter industrial sensors with enough fluid volume around the tip for good circulation. The extra depth does not improve the bath's intrinsic stability specification, but it removes immersion depth as a source of uncertainty, which is often the dominant error in industrial calibration workflows.
Can I use the same immersion depth for a dry block as a liquid bath?
No. Dry block calibrators need roughly twice the immersion depth for comparable accuracy because thermal coupling through the insert air gap is far weaker than through stirred liquid. If your sensor is too short for 15 diameters in a dry block, either switch to a liquid bath or use an external reference probe in the block's reference well for a comparison calibration.
