A single-Y Cartesian robot picks a part, travels to the place position, releases, and returns empty to pick again. Every return stroke is dead time. If your application needs 45 cycles per minute and a single-Y gantry tops out at 28, you have three choices: add a second robot, switch to a delta, or go dual-Y. This article compares the single and dual Y-axis gantry configurations on throughput, cost, complexity, and application fit — so you can decide whether doubling the Y axis solves your problem or creates a more expensive one.
What a Y-Axis Actually Does in a Cartesian Gantry

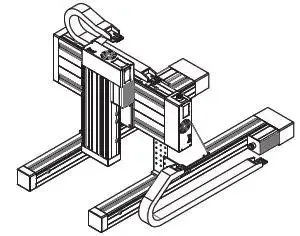

In a standard three-axis Cartesian robot, X is the long-travel beam (left-to-right across the work area), Y is the cross-axis riding on the X beam (forward-to-back), and Z is the vertical stroke carrying the end effector. The Y-axis carriage is the workhorse — it accelerates into position at every pick and every place. In a single-Y configuration, one Y carriage shuttles back and forth, carrying one gripper. In a dual-Y configuration, two independent Y carriages ride on the same X-axis gantry, each with its own Z-axis and gripper.
Throughput: The Real Numbers Behind Dual Y
Dual Y does not double throughput. The X-axis beam is shared — only one carriage can occupy a given X position at a time. But it does eliminate the empty return stroke, which in a typical pick-and-place cycle accounts for 35–45% of total cycle time. The result: 60–85% more parts per minute than a single-Y gantry running the same move profile.
A single-Y robot running a 300 mm pick-to-place stroke with 1.5 m/s peak velocity and 10 m/s² acceleration completes roughly 25–30 cycles per minute. A dual-Y equivalent on the same gantry frame hits 45–52 cycles per minute. The gap widens as travel distance increases — longer strokes mean longer empty returns, and dual Y reclaims all of that time.
- Cycle gain mechanism
- While Y₁ places Part A, Y₂ picks Part B. The X-axis never waits for an empty return.
- Practical gain range
- 60–85% throughput increase over single Y, depending on stroke length and pick/place symmetry
- Diminishing returns point
- Below 150 mm stroke, the dual-Y advantage shrinks below 40% — servo tuning and collision avoidance overhead eat into the gain
- Ceiling
- Dual Y never reaches 2× throughput because the X-axis remains a shared resource
Cost and Complexity
A dual-Y gantry adds a second Y servo motor, a second Y drive, a second Z-axis, a second gripper, and a longer X-axis beam to accommodate both carriages. It also adds a collision-avoidance layer in the motion controller. Expect 40–65% higher system cost over an equivalent single-Y gantry — not double, because the base frame, X-axis drive, and controller are shared.
What you also buy is more commissioning time. Two independent Y carriages must be tuned to avoid overshoot collisions at the center of the X-axis. The motion controller needs anti-collision zones — software-defined exclusion windows where one Y carriage decelerates if the other enters. This is standard in modern motion controllers but adds integration labor.
Part Weight and the Gantry Frame
A dual-Y gantry carries two grippers and two parts simultaneously during the overlapped portion of the cycle. If each part weighs 5 kg and each gripper weighs 3 kg, the X-axis beam sees up to 16 kg of moving payload — double the 8 kg of a single-Y equivalent. The beam cross-section must be upsized, or acceleration must be derated. Check the X-axis moment rating: two carriages at opposite ends of the beam produce a twisting load that a single centered carriage does not.
Which Applications Favor Single Y
- Cycle times below 30 ppm — the added cost of dual Y does not pay back
- Parts over 15 kg — the X-axis upsizing cost escalates sharply with dual payload
- Process steps requiring dwell time at pick or place (adhesive dispensing, vision inspection) — the dead time of single Y overlaps with the process dwell, so dual Y adds less value
- Cleanroom applications where every additional servo drive adds particulate and thermal load
Which Applications Favor Dual Y
- High-speed pick-and-place above 35 ppm — electronics assembly, medical device packaging, consumer goods
- Long-travel applications (over 500 mm) where the empty return stroke dominates cycle time
- Multi-tool workflows — Y₁ picks raw parts while Y₂ places finished assemblies, each with different grippers
- Lines where floorspace is constrained and adding a second robot is not an option
Choosing a Servo Motor for Your Y-Axis
Y-axis acceleration determines cycle time more than peak velocity for strokes under 400 mm. A low-inertia servo like the Siemens S-1FL6 LI (0.16 Nm, 3000 rpm, IP65) suits light-gripper single-Y applications where the moving mass stays under 3 kg. For dual-Y carriages carrying heavier grippers, the Y-3023-2-H00AA high-torque servo provides the reserve acceleration needed to keep both carriages synchronized without overshoot.
The FAULHABER MC Series compact motion controller handles single-axis positioning for simple Cartesian layouts. For coordinated dual-Y motion with collision-avoidance zones, the Emerson PACMotion VFD with PROFINET provides the multi-axis synchronization and real-time position bus needed to run two Y carriages on one X beam safely.
How do I calculate whether dual Y pays back for my specific stroke length?
Measure your single-Y cycle: T_total = T_pick + T_travel_loaded + T_place + T_return_empty. Estimate dual-Y cycle: T_total_dual = T_pick + T_travel_loaded + T_place (the return is eliminated by the overlapping carriage). The throughput gain is T_total / T_total_dual. If this ratio is below 1.35 for strokes under 300 mm, single Y is the better financial decision. For strokes above 500 mm, dual Y almost always wins if your annual volume exceeds 2 million cycles.
Can I retrofit a second Y-axis to an existing single-Y gantry?
Sometimes. If the X-axis beam was originally sized for a single centered load, adding a second Y carriage may exceed the beam's moment rating. Check the manufacturer's linear guide specification — the M_x moment capacity must handle two offset payloads. The X-axis servo drive also needs a free axis channel and sufficient bus current to run a second Y motor. If the original controller lacks multi-axis coordination or anti-collision firmware, retrofitting may cost more than a new dual-Y frame.
