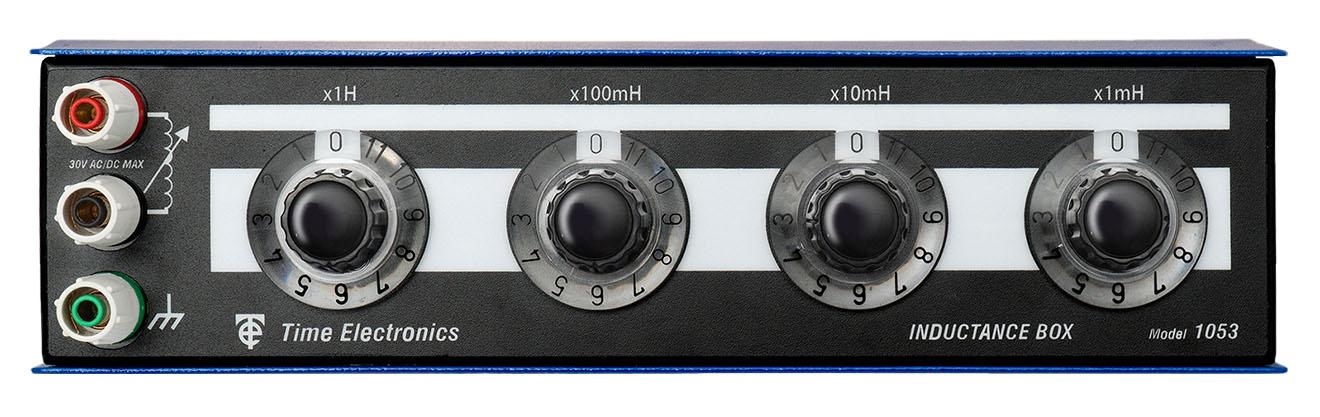

The Time Electronics 1053 decade inductance box offers an accurate solution for filter design, experimental work, general purpose substitution, and DC to DC converter design needs. It features four decades with step sizes of 1mH, 10mH, 100mH, and 1H, allowing a maximum setting of 11.11 H.

The unit provides 3% accuracy across its range. Custom wound, high permeability ferrite cores ensure insignificant influence from external magnetic fields and maximum stability. The construction is highly stable and fully screened, with an in-line readout for clear value indication.

Four easy-to-read dials allow precise setting of variable inductance values, making it suitable for a wide range of applications in both laboratory and industrial settings.

Key Features

• Range: 1mH to 10H
• Accuracy: 3%
• Four decades: 1mH, 10mH, 100mH, 1H step sizes
• Maximum setting: 11.11 H
• In-line readout
• High permeability ferrite cores
• Fully screened construction
• Dimensions: 25 x 6 x 10 cm

Applications

• Filter design and testing
• DC to DC converter development
• General purpose inductance substitution
• Experimental laboratory work
