Product Specifications
- Manufacturer
- Flowline
- Model Number
- US01 / US03
- Type
- Reflective Ultrasonic Level Transmitter
- Ranges
- US01: 1.5 m (4.9 ft); US03: 3 m (9.8 ft)
- Accuracy
- US01: 3 mm; US03: ±0.2% of range
- Beam Width
- 2 in (5 cm)
- Protection
- Type 6P (IP68)
- Documents
- Product Manual, Product Specs
Product Description
The Flowline EchoTouch US01 & US03 level transmitter is an intrinsically safe reflective ultrasonic level transmitter provides continuous level measurement up to 9.8ft (3m) with a 4-20mA analog signal output, and is configured via the Flowline WebCal software. The non-contact liquid level sensor features our proprietary Reflective Technology™ that delivers reliable level measurement in condensing environments. The US01 and US03 is ideal for small tanks with non-foaming or highly vaporous media such as chemicals, water, wastewater and oil.
Flowline
Compare

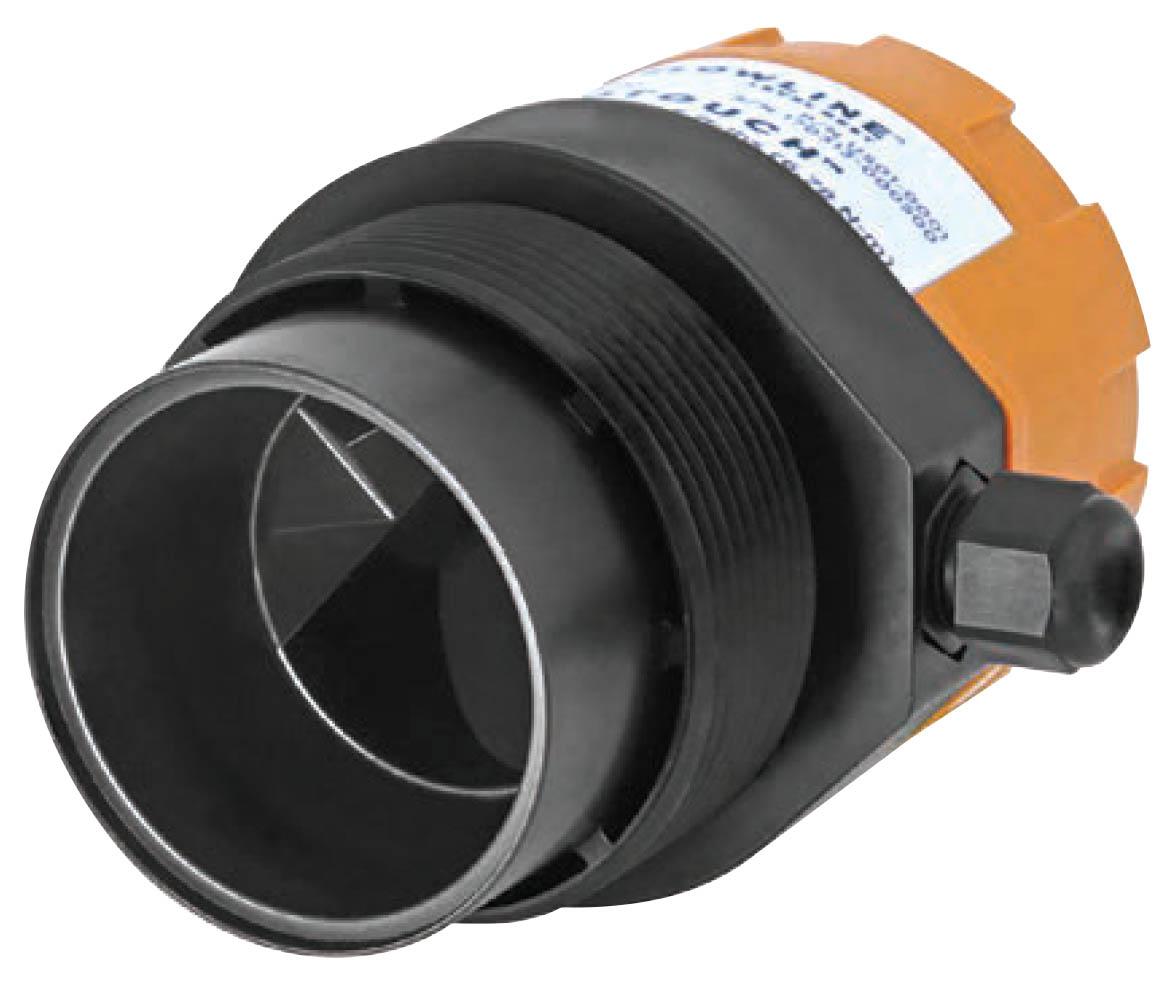

Reflective Ultrasonic Level Transmitter - 9.8ft | Flowline EchoTouch US01 US03
Reflective Technology, 4-20mA, IP68, -40-80°C
MPN/Series: US01 / US03
Product Specifications
- Manufacturer
- Flowline
- Model Number
- US01 / US03
- Type
- Reflective Ultrasonic Level Transmitter
- Ranges
- US01: 1.5 m (4.9 ft); US03: 3 m (9.8 ft)
- Accuracy
- US01: 3 mm; US03: ±0.2% of range
- Beam Width
- 2 in (5 cm)
- Protection
- Type 6P (IP68)
- Documents
- Product Manual, Product Specs
