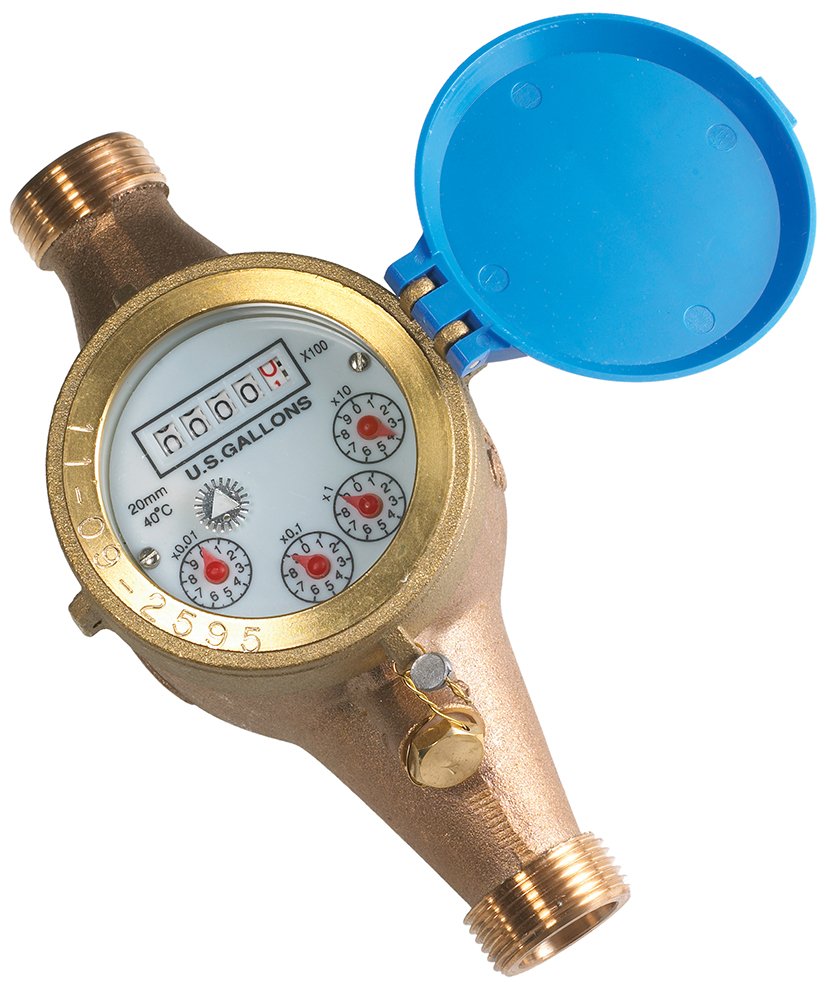

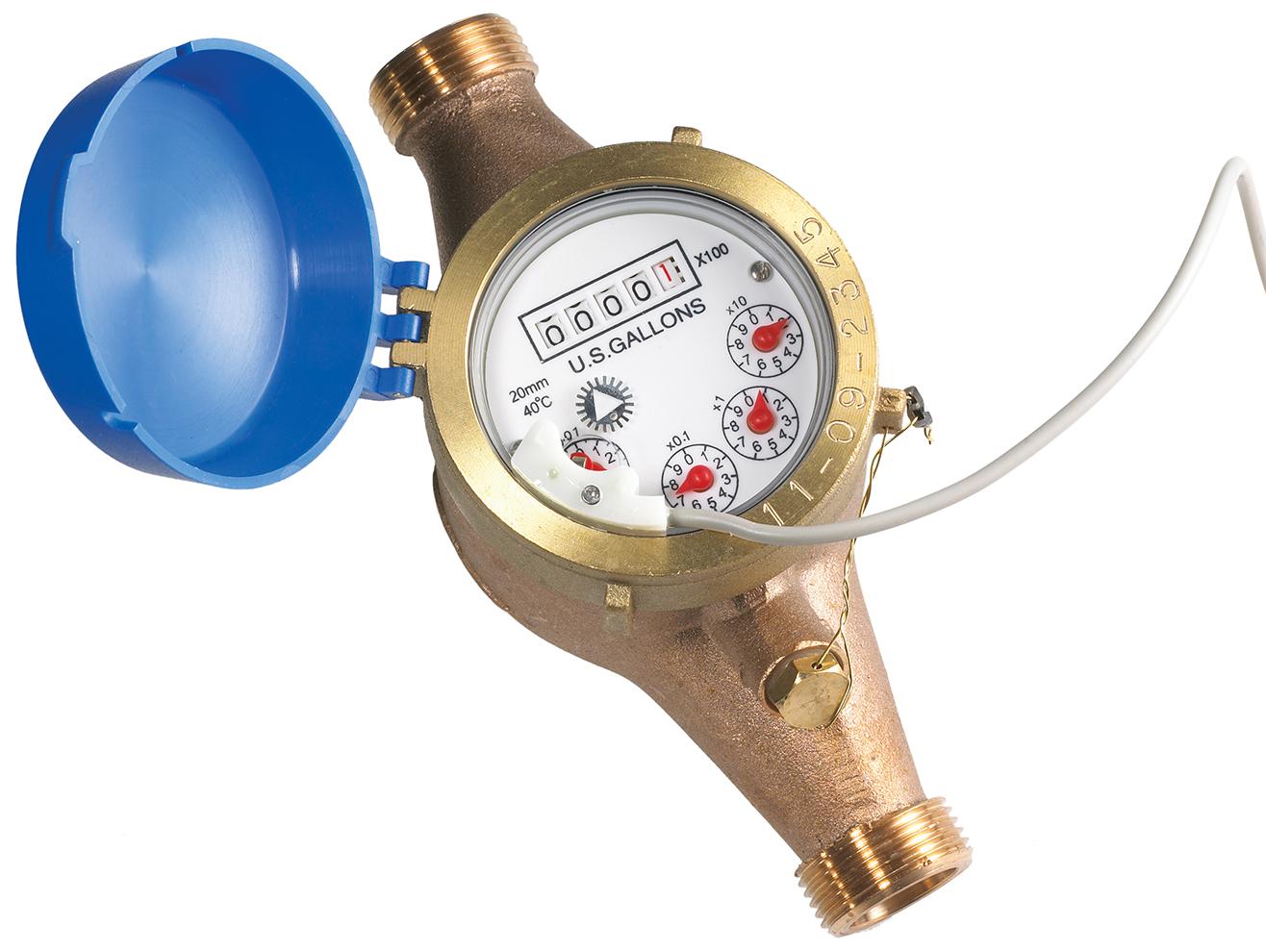

The AccentPDIR GLF Series multi-jet water meter uses the widely accepted multi-jet principle. The GLF meter's gear train drives the register totalizer dials. For pulse output meters, a reed switch sensor is attached to the outside of the lens and detects a magnet arm that has replaced one of the dial pointers. The reed switch output is a dry contact closure and does not require power.

The meter is certified to NSF/ANSI 61. Maximum temperature is 105°F (40°C) with maximum operating pressure of 150 psi. The body is made of EcoBrass bronze alloy, internals are engineered thermoplastic, and the magnet is Alnico. Accuracy is ±1.5% of reading within Qt-Qmax.

The reed switch sensor features 20mA maximum current, 24Vdc or Vac maximum voltage, and comes with 12ft (4m) standard cable (max run 2000ft). This allows for remote monitoring and integration with data acquisition systems.
