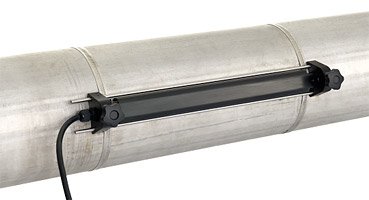

The Panametrics AquaTrans AT600 ultrasonic flow meter has no moving parts and requires minimal maintenance. An on-board microprocessor uses patented correlation transit-time technology for long-term, drift-free operation. Automatic adjustment to changing fluid properties and dynamically configured operating software simplifies programming.

The AT600 is designed specifically for water and wastewater applications in full pipes, but works with various acoustically conductive liquids. Fluid types include most clean liquids and many liquids with small amounts of entrained solids or gas bubbles. Applications include potable water, wastewater, sewage, discharge water, treated water, cooling and heating water, irrigation water, and other industrial fluids.

The accuracy in field calibration is ±0.5% assuming installation is a fully developed, symmetrical flow profile (typically 10 diameters upstream and 5 diameters downstream of straight pipe run). Clamp-on transducers provide better than 1% of reading accuracy in most applications. The bidirectional flow range covers -40 to 40ft/s (-12.19 to 12.19m/s) with pipe size options from 2 to 48 inches standard (larger sizes available). Operating temperature range is -4 to 131°F (–20 to 55°C). All meters are water calibrated with ±0.2% of reading repeatability. The AT600 carries CE, UL, CSA, and MCert electronics certifications and is the replacement for the AT868-1-X-X.
