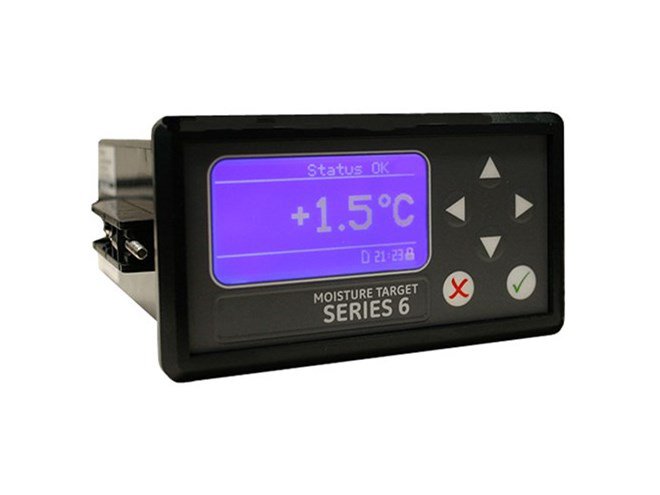

The Panametrics Moisture Target Series 6 is a single-channel analyzer that measures moisture in compressed air and gases. Designed for permanent installations, the MTS6 can significantly enhance the performance of OEM products by allowing closed-loop control of moisture. It is used in conjunction with M Series moisture probe or VeriDri moisture transmitter for air/gas dryer original equipment.

The microprocessor-based MTS6 accurately tracks fast-changing process conditions and displays dew/frost point temperature in °F or °C on an LCD. Dew/frost point is also available as an analog voltage or current output, and the Moisture Target Series 6 features built-in isolation to ensure the integrity of signals to remote devices. The unit also features two Form C alarm relays for high and low dew/frost point limits. The microprocessor-based electronics and six-button keypad combine to make selection of analog output zero and span, alarm setpoints fast and easy, and entry of calibration data sample.

The panel-mount MTS6 comes in a compact DIN standard meter housing for applications where space is at a premium. The case slides directly into the panel cutout, and is held in place from the rear by captive screws. The NEMA 4 weatherproof membrane front display/keypad ensures reliable operation in industrial environments.

Key Features

• Low-cost, single-channel hygrometer for OEM applications
• Compatible with M Series moisture probe or VeriDri moisture transmitter
• NEMA 4 weatherproof membrane front display/keypad
• Built-in isolated current or voltage analog output
• MicroSD card for logging data up to 32 GB
• Panel-mount and board-level configurations
• One fail-safe fault relay
• Two standard Form C relays SPDT, rated for 3 A at 250 VAC/30 VDC
• Set to any level within the range of the instrument; programmable from the front panel
• 128 x 64 matrix LCD display
• Displays dew point temperature in °F, °C or sensor signals for diagnostics
• Standard switch-selectable outputs: 0-2V, 0-20mA, 4-20mA, user-programmable

Applications

• OEM air/gas dryer systems
• Compressed air moisture monitoring
• Process gas measurement
• Industrial moisture control
