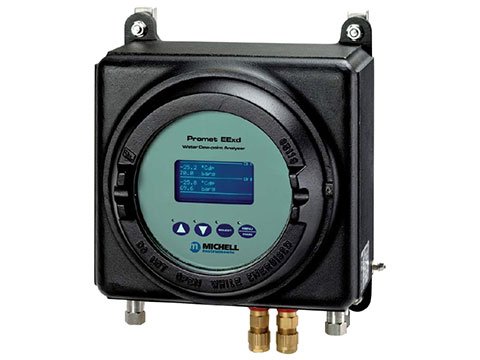

Michell Instruments Promet EExd Process Moisture Analyzers are hazardous-area rated industrial hygrometer systems for measurement of water vapor content in low and high pressure process gases on natural gas platforms and terminals as well as in petrochemical plants and industrial manufacturing facilities . The Promet EExd is installed directly in the hazardous area, simplifying site installation and retrofits.

The analyzer combines the latest Michell moisture sensing technologies with sample conditioning systems designed to provide a reliable and easy-to-operate, multi-channel, on-line instrument for moisture measurement in flammable gases. It features EExd flameproof certification (IECEx, ATEX, CCSAUS, TC TR Ex) for complete hazardous area installation .

The Promet EExd offers single- or dual-channel measurement of moisture content, dew point, and pressure over a range of -120 to +30°Cdp and 0.001 to 30,000 ppmV. It includes automatic pressure compensated conversions for ppmV, lbs/MMscf, and mg/m³ for natural gas. The instrument is sour gas compatible and includes remote global access options. Calibration is traceable to NPL (UK) and NIST (USA) with field calibration maintenance capability .

Key Features

• EExd flameproof certified: IECEx, ATEX, CCSAUS, TC TR Ex
• Single or dual-channel measurement
• Range: -120 to +30°Cdp, 0.001 to 30,000 ppmV
• Dew point accuracy: ±1°C (-59.9 to +20°C), ±2°C (-60 to -100°C)
• Pressure measurement up to 250 barg with ±0.25% FS accuracy
• Automatic pressure compensated conversions for natural gas
• Sour gas compatible
• Remote global access options
• Two non-isolated 4-20 mA per channel
• Modbus RTU communication
• Capacitive touch-screen through glass interface
• Vacuum fluorescent display
• Internal temperature control for condensation protection

Applications

• Natural gas platforms and terminals
• Petrochemical plants
• Industrial manufacturing facilities
• Sour gas applications
• Hazardous area moisture monitoring
