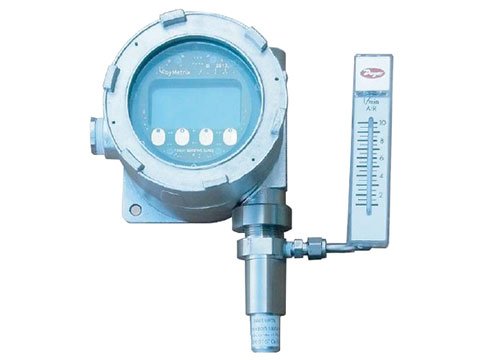

The PhyMetrix ExMa Explosion-Proof Moisture Analyzer is a complete sampling system and natural gas dew point meter with built-in flow regulation and a cleanable filter, featuring a top-of-the-line on-screen histogram and trend graph . The analyzer is approved for explosion-proof installations in the USA, Canada, and ATEX.

The instrument provides a dew point measurement range of -110 to 20°C with ±2°C accuracy and 0.8°C repeatability. It features a 95% step change response time of 3 minutes and operates over a temperature range of -40 to 70°C. The analyzer includes built-in temperature compensation, 4/20 mA sink or source output, RS-485 communication, and programmable data logging with clock calendar .

The ExMa features thru-the-glass touch user buttons for safe operation in hazardous areas without opening the enclosure. The user interface consists of a backlit graphic LCD display with four touch areas on the glass cover. A Virtual Analyzer PC software program is available for user training and evaluation . The unit has 316 stainless steel and PTFE wetted parts and is suitable for extractive or bypass installation.

Key Features

• Dew point range: -110 to 20°C (-166 to 68°F)
• Accuracy: ±2°C, Repeatability: 0.8°C
• 95% response in 3 minutes
• Built-in flow regulation, cleanable filter, and flow meter
• On-screen histogram and trend graph
• Continuous status and diagnostics display
• Programmable data logging with clock calendar
• 4/20 mA sink or source output and RS-485
• Thru-the-glass touch user buttons
• NEMA 4X/IP67 explosion-proof enclosure
• Virtual Analyzer PC software for training & evaluation
• NIST traceable calibrations
• Approved explosion-proof: USA, Canada, ATEX

Applications

• Natural gas moisture measurement
• Hazardous area industrial processes
• Pipeline moisture monitoring
• Gas processing plants
