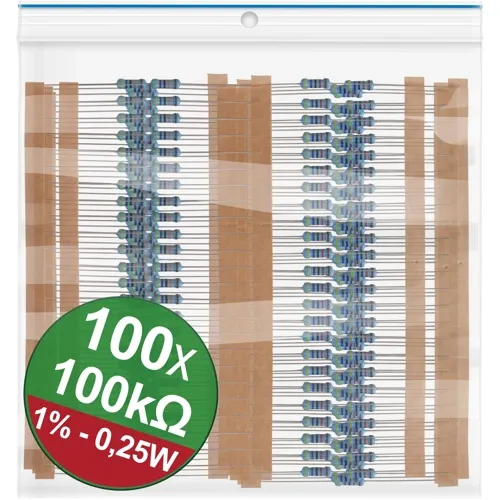

The 100kΩ resistor is essential for high-impedance designs. It appears in op-amp bias networks, photodiode transimpedance amplifiers, voltage dividers for high-side sensing, and any circuit where minimizing current draw is critical. The QUADRIOS 22P054 provides 100 pieces of 100kΩ metal film resistors, suitable for both lab stock and production runs.

Key Specifications

At 100kΩ, the temperature coefficient of ±100 ppm/K ensures that the resistance drifts by less than 10Ω per degree Celsius — negligible for most analog signal chains. The 0.25W power rating is more than adequate for signal-level applications; even at 100V, the power dissipated would be only 0.1W, leaving plenty of margin.

Mechanical and Application Notes

The axial leaded package measures 6 mm in length with a 2.3 mm diameter. These resistors fit breadboards, perfboard, and standard PCB through-holes. They are easy to solder, bend, and desolder, making them ideal for prototyping, educational labs, and field repairs. The bag contains 100 pieces of the same value.
