Product Specifications
Manufacturer: Gizmo Engineering
Model Number: IS-T Series
Type: Intrinsically Safe Tank Alarm
Approval: Class I, Div. 1 hazardous locations
Power: Lithium battery (2,400 mAh)
Alarm: 101 dB warbling buzzer, LED beacon
Protection: IP65, 316 SS float, painted aluminum enclosure
Documents: Product Manual, Product Specs
Product Description

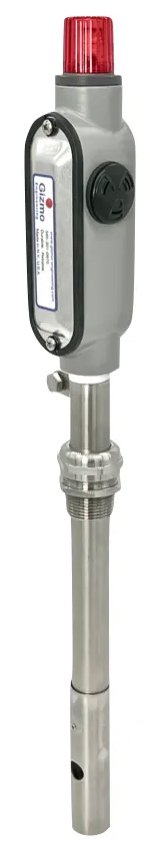

The Gizmo Engineering Intrinsically Safe Tank Alarm alerts if liquid level is high or low, using uninterruptible battery power to remain always on duty, with an included lithium battery. When the alarm activates, the buzzer sounds and beacon LED flashes. In default mode, the user presses the button to silence the buzzer, while the LED continues to flash as a reminder. The 101 dB buzzer uses a unique warbling sound to cut through factory noise.
Different behaviors are field-selectable using DIP switches on the circuit board, including: 30 minute snooze alarm; "Tank filling" mode shuts off LED and buzzer until the next liquid level event; Auto or manual reset of the relay after level corrected; Relay orientation N.O. or N.C.; Relay output delayed 15 minutes.
The pipe and float switch are constructed from 316 stainless steel, and an SS float guard protects the float switch so it can be moved frequently without worry about damage. The SS and Buna float switches are reversible, and a grounding lug is included on stainless steel units.
The uninterruptible battery power allows for installation anywhere. No outlets, electricians, or inspectors are needed. The included lithium batteries have a shelf life of 20 years, and a 2,400mA-hr capacity combined with smart software allow the alarm to sound for up to 25 days. When batteries run low, a unique low-battery signal is given, and the batteries can be replaced by the user even in hazardous locations.
