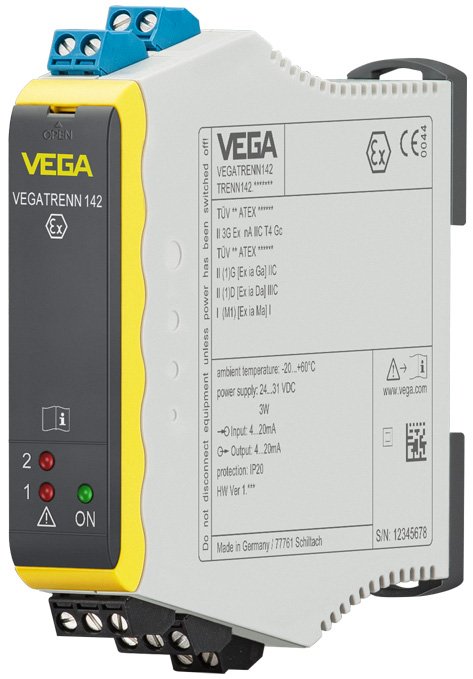

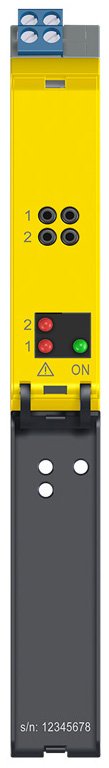

Double Channel Ex Separator - 4-20mA/HART | VEGA VEGATRENN 142

1 / 5

Product Specifications

Manufacturer: VEGA
Model Number: VEGATRENN 142
Type: Double Channel Separator
Power Supply: 24-31VDC
Inputs: 2 x 4-20mA/HART (active, powers sensors)
Outputs: 2 x 4-20mA/HART
Documents: Product Manual, Product Specs

Product Description

The VEGA VEGATRENN 142 double channel separator is used for galvanic separation, intrinsically safe power supply, and the signal transmission of Ex approved 4 to 20mA/HART sensors in hazardous areas. The separate voltage supply ensures a reliable measured value transmission.

The VEGATRENN 142 is used in all industries, also with Ex applications. It is suitable for bidirectional transmission of HART signals. The HART signal can be tapped via the front-mounted HART communication sockets or the terminals. The total transmissibility of HART signals allows unrestricted access to the sensor settings.
