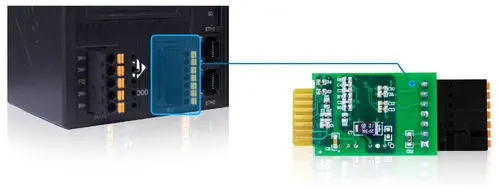

The Nanda Automation COM2001-0201 is a serial communication signal board designed specifically for the NA2000 series PLC platform. It functions as a compact, panel-mountable communication expansion module that adds dedicated RS422 and RS485 interfaces to the host PLC system. This enables the PLC to communicate with a wider array of field devices, remote I/O modules, and supervisory systems using standard industrial protocols. The board is an essential component for building distributed control architectures where multiple devices must be networked over moderate distances.

The COM2001-0201 provides native support for both Modbus RTU and Modbus Master protocols. This dual-protocol capability allows the module to function as a standard Modbus RTU slave, responding to read/write requests from a master device, or to operate as a Modbus Master, actively polling and controlling other slave devices on the RS422 or RS485 network. This flexibility makes it suitable for a variety of roles, from integrating the NA2000 PLC into a larger SCADA system to orchestrating a local network of sensors and actuators.

The module's RS422 and RS485 interfaces share a common set of performance specifications, operating at baud rates from 9600 to 38400 bits per second and supporting transmission distances of up to 1000 meters. The two interfaces differ primarily in their network topology and node capacity. The RS422 interface operates in full-duplex mode and can support up to 10 individual nodes. The RS485 interface operates in half-duplex mode and can support a larger network of up to 16 nodes. This gives system integrators the flexibility to choose the appropriate physical layer based on the specific requirements of the application.

As part of the NA2000 ecosystem, the COM2001-0201 integrates seamlessly with other NA2000 components. It is typically installed directly onto the PLC or within a compatible panel-mount enclosure. The module is ideal for industrial automation applications requiring reliable, multi-device communication, such as factory floor data collection, distributed machine control, remote monitoring of pump stations or valve arrays, and integration of legacy serial devices into modern Ethernet-based control systems.

Technical Specifications
