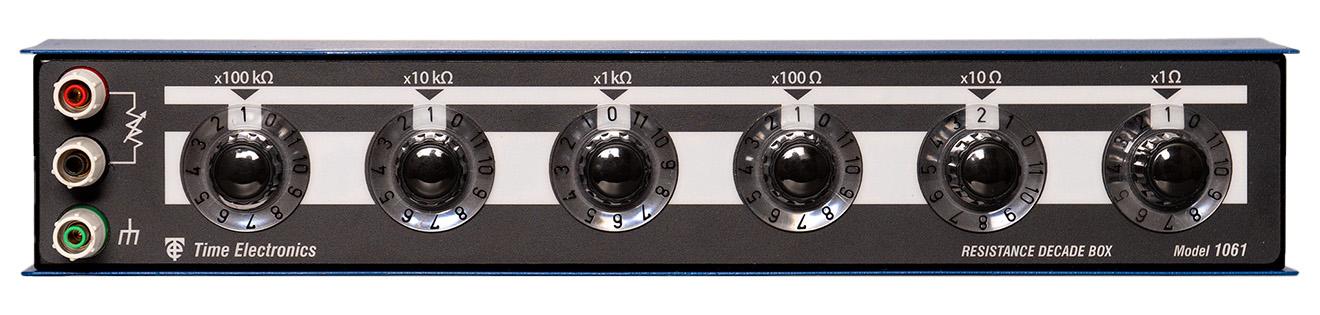

The Time Electronics 1061 resistance decade box is a low-cost, high accuracy and high stability electrical testing device designed to meet the standard required in both educational and industrial applications.

The 1061 features a six decade design with ranges from 1Ω to 1.2MΩ. Metal film resistors with a 0.75 watt power rating are used throughout, providing the advantages of stability and low temperature coefficient. Six large switches with a clear numerical readout make the 1061 easy to use in educational establishments or in other applications where robustness is a price consideration.

The slim line design means it takes up minimum bench space, while the 1% accuracy and wide range makes it suitable for production or select-on-test usage. The case provides complete electrostatic screening. Front panel safety terminals are compatible with 4mm shrouded plugs, as well as standard plugs, bare wires, and spade terminals.

Key Features

• Range: 1Ω to 1.2MΩ
• Accuracy: ±1%
• Residual resistance: less than 150mΩ
• Power rating: 0.75 watt per resistor
• Six decade design with in-line readout
• Stable metal film resistors
• Fully screened metal case
• Mechanically and electrically robust
• Safety terminals (4mm)

Applications

• Educational laboratory experiments
• Production testing
• Select-on-test applications
• General electronics work
