Product Specifications
Manufacturer : ICON Process Controls (Truflo)
Product Number : NC-25
Type : Non-Contact Flow and Level Switch
Pipe Diameters : 3/8 to 1/2 inch (7 to 13mm)
Accuracy : ±0.2mm max
Output : NPN open collector
Operating Temperature : 32 to 131°F (0 to 55°C)
Features : All plastic design, 14-turn sensitivity adjuster, orange light detection indicator, flow/no flow measurement
Documents: Product Specs
Product Description
The ICON Truflo NC-25 flow and level switch is a non-intrusive all-plastic design that fits pipe diameters 3/8 to 1/2 inch (7 to 13mm). The NC-25 features a 14-turn sensitivity adjuster and a orange light detection indicator. It detects the presence of fluid in the pipe (flow/no flow) with ±0.2mm maximum accuracy. The NPN open collector output allows easy integration with control systems. Operating temperature range is 32 to 131°F (0 to 55°C).

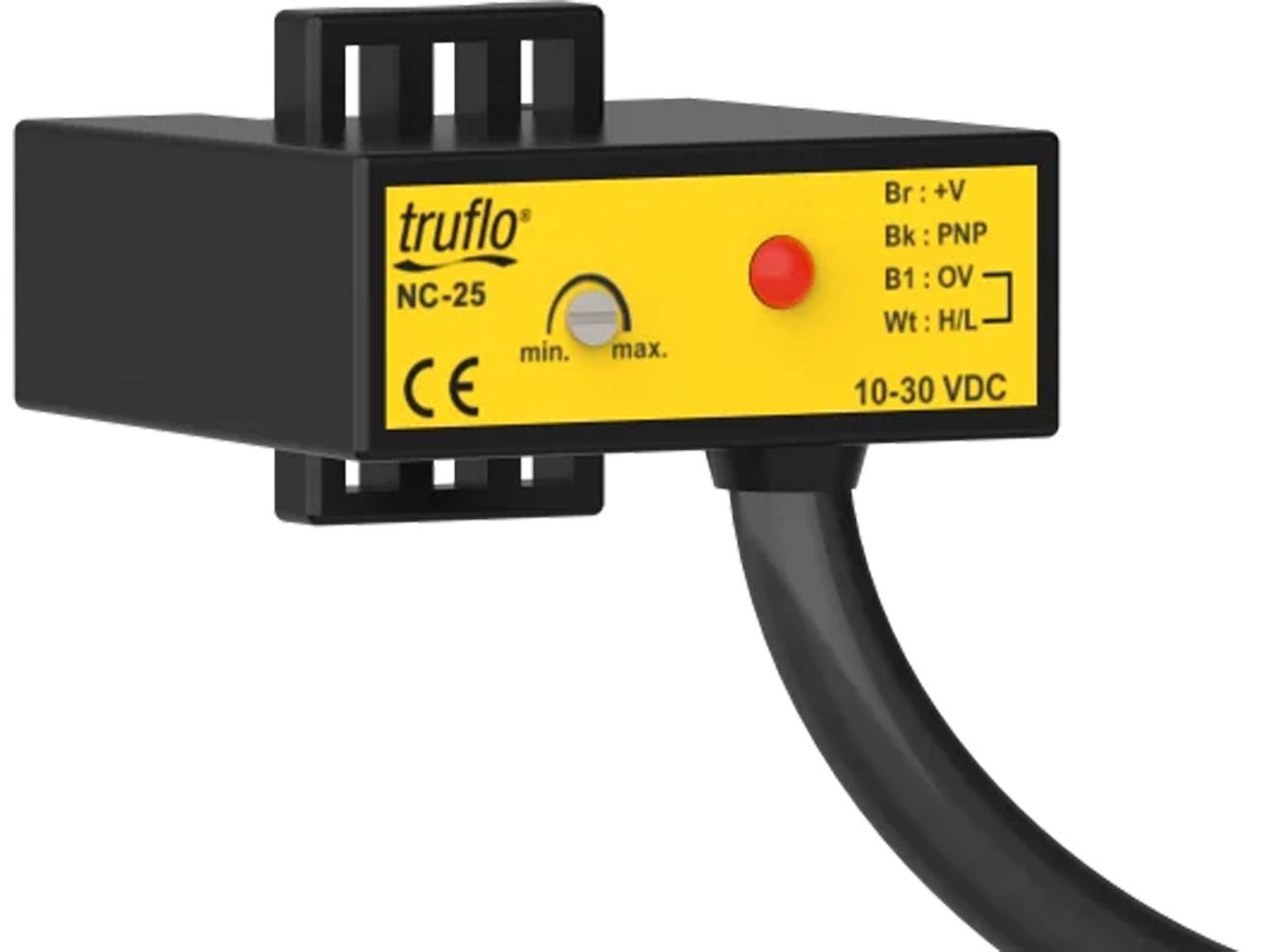

Non-Contact Flow/Level Switch - 3/8-1/2in Pipe | ICON NC-25
Product Specifications
Manufacturer : ICON Process Controls (Truflo)
Product Number : NC-25
Type : Non-Contact Flow and Level Switch
Pipe Diameters : 3/8 to 1/2 inch (7 to 13mm)
Accuracy : ±0.2mm max
Output : NPN open collector
Operating Temperature : 32 to 131°F (0 to 55°C)
Features : All plastic design, 14-turn sensitivity adjuster, orange light detection indicator, flow/no flow measurement
Documents: Product Specs
