Product Specifications
- Manufacturer
- Endress+Hauser
- Product Number
- Proline Promass O 100 / 8O1B
- Type
- High-Pressure Coriolis Flow Meter
- Nominal Diameter
- DN 80 to 150 (3 to 6in)
- Mass Flow Accuracy (Liquid)
- ±0.10% standard, ±0.05% optional
- Volume Flow Accuracy (Liquid)
- ±0.10%
- Density Accuracy (Liquid)
- ±0.0005 g/cm³
- Medium Temperature Range
- -50 to +150°C standard, -50 to +205°C optional
- Max Process Pressure
- PN 250 (Class 1500)
- Wetted Materials
- Measuring tube 25Cr Duplex, 1.4410 (UNS S32750)
- Transmitter Housing
- Ultra-compact
- Ingress Protection
- IP69K
- Local Display
- Available
- Features
- Resistant to stress corrosion cracking, suitable for offshore
- Documents
- Product Manual , Product Specs
Product Description

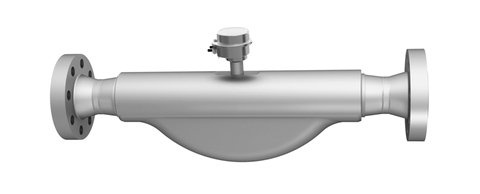

The E+H Proline Promass O 100 Coriolis flow meter is designed for premium accuracy of liquids and gases at the highest process pressures in the oil and gas industry. The sensor is fully suitable for offshore conditions and resistant to stress corrosion cracking. With its ultra-compact transmitter, it delivers full performance on the smallest footprint, enabling seamless system integration.
Measuring tube in 25Cr Duplex, 1.4410 (UNS S32750). Process pressure up to PN 250 (Class 1500). Nominal diameter DN 80 to 150 (3 to 6in). Mass flow accuracy ±0.10% standard, ±0.05% optional. Density accuracy ±0.0005 g/cm³. Medium temperature range -50 to +205°C.
Robust ultra-compact transmitter housing with IP69K protection. Local display available. Heartbeat Technology ensures process safety at all times.
