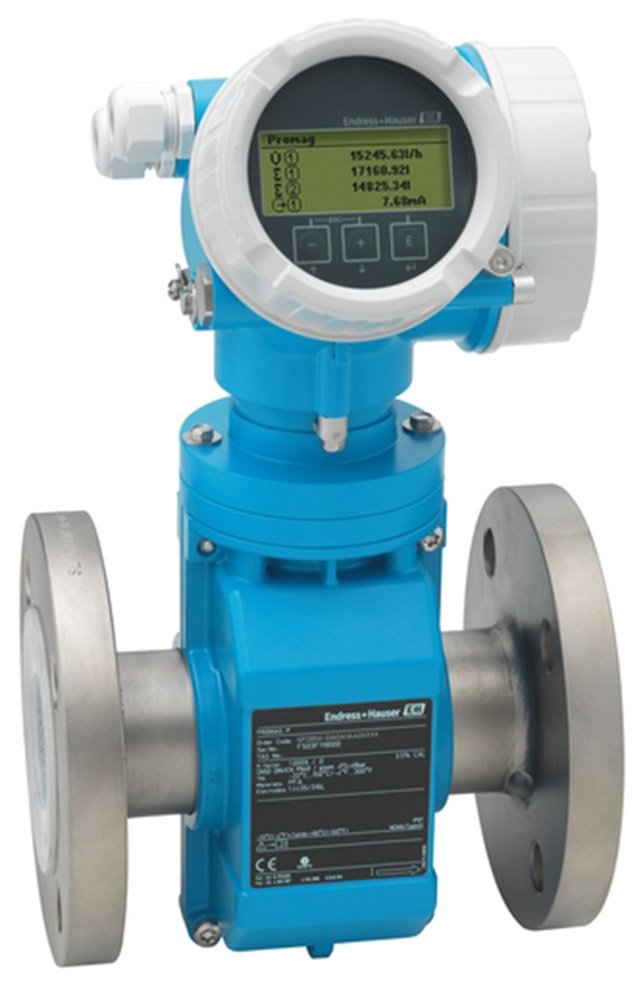

The E+H Proline Promag P 200 Electromagnetic Flow Meter is designed for chemical and process applications with corrosive liquids and media temperatures up to 302°F. Genuine loop-powered technology enables cost-effective and seamless integration into existing infrastructures. It offers highest operational safety in hazardous areas thanks to its intrinsically safe design (Ex ia) .

The meter is available with PFA or PTFE liners. The PFA liner handles media from -4 to 302°F (standard) or up to 356°F with high-temperature option. The PTFE liner covers -40 to 266°F. Standard maximum measured error is ±0.5% .

The transmitter offers full access to process and diagnostic information via numerous freely combinable I/Os and fieldbuses. Digital communication options include HART, PROFIBUS DP, Modbus RS485, PROFINET, and EtherNet/IP. The meter is housed in an IP66/67, Type 4X enclosure .

Optional Heartbeat Technology complies with the requirements for traceable verification according to ISO 9001:2008 Section 7.6a (TÜV-attestation). Hazardous area approvals include ATEX, IECEx, cCSAus, NEPSI, INMETRO, EAC, and JPN. Predecessors include Promag 23P, 50E, 50P, 53E, and 53P .
