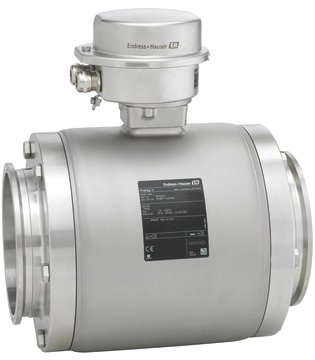

The E+H Proline Promag H 100 Electromagnetic Flow Meter is designed for hygienic applications with highest requirements in the food and beverage and life sciences industries. The ultra-compact transmitter provides full performance on the smallest footprint and enables seamless system integration, making it the preferred choice for skid builders, equipment manufacturers and system integrators .

The meter features multivariable measurement for flow, temperature, and conductivity. The bidirectional measuring principle is independent of pressure, density, temperature, and viscosity. With no moving parts, it is maintenance-free and suffers no pressure loss due to cross-section constriction .

The PFA liner handles media temperatures from -4 to 302°F. Standard accuracy is ±0.5% o.r. ± 1 mm/s, with optional ±0.2% o.r. ± 2 mm/s. The transmitter offers full access to process and diagnostic information via freely combinable I/Os and fieldbuses including HART, PROFIBUS DP, Modbus RS485, EtherNet/IP, and PROFINET .

Heartbeat Technology ensures compliance and process safety at all times. The meter is housed in an IP66/67, Type 4X enclosure standard, with IP69 available as an option. Hazardous area approvals include ATEX, IECEx, cCSAus, INMETRO, and EAC. Predecessors include Promag 50H and Promag 53H .
