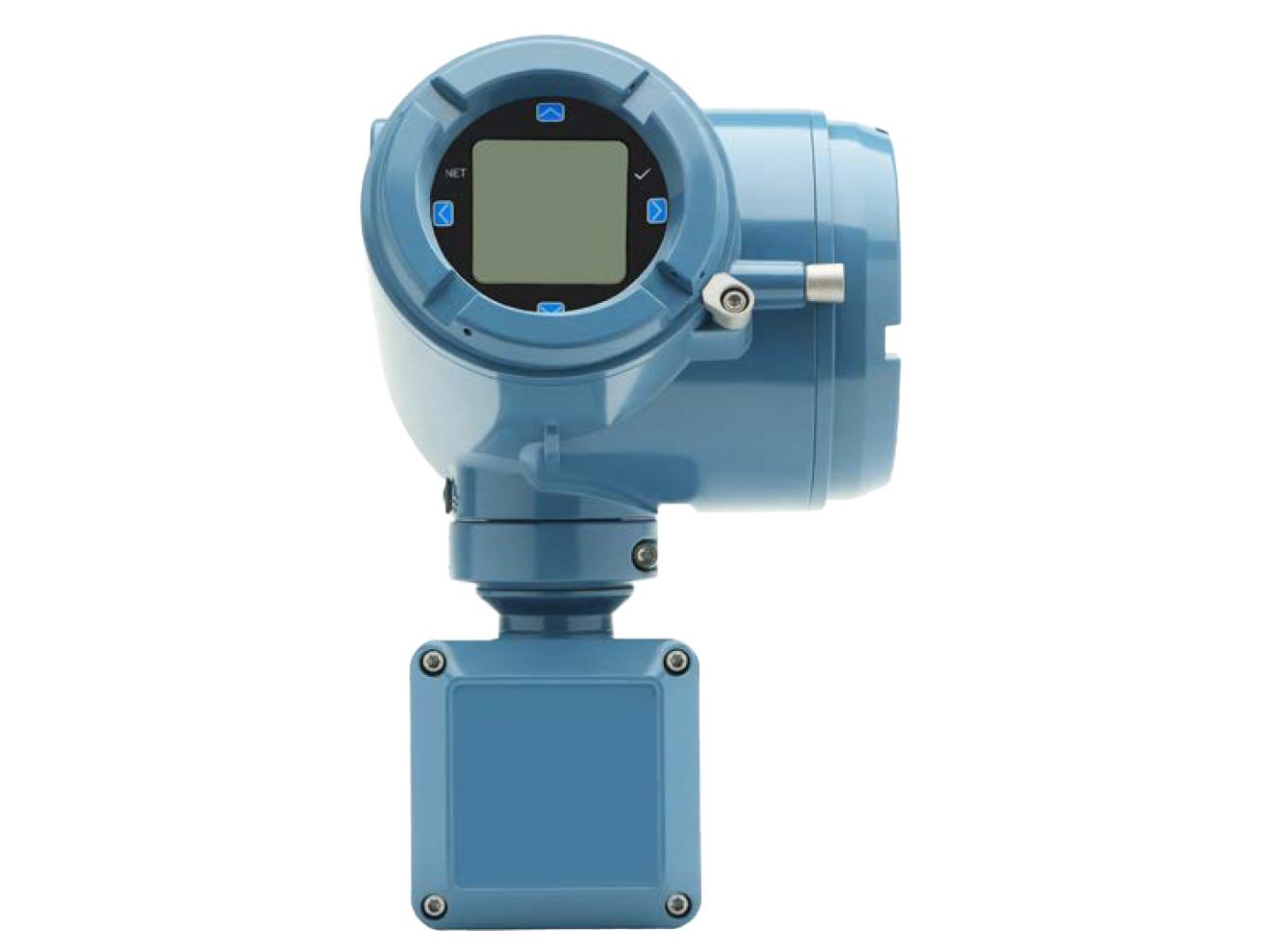

The Micro Motion 4700 Coriolis Field Mount Transmitter enables the use of reliable and accurate Micro Motion Coriolis meters for your flow measurement application, with flexibility through extensive configurable inputs and outputs and advanced diagnostics. The 4700's optional historian with Real Time Clock feature records upsets and deviations every second for 13.5 days and every five minutes for one year, providing accurate and thorough datalogging to improve monitoring process in the short and long term.

The 4700 provides direct mass measurement which improves process control while reducing the number of measurement devices required. The 4700 includes a basic pass/fail version of Smart Meter Verification, with the optional upgrade the user can pinpoint erosion, corrosion, or other affecting factors, allowing uninterrupted processing while troubleshooting. The 4700 also includes high-accuracy density measurement which reduces or eliminates waste in process.

Technical specifications include 5-95% relative humidity range, operating temperature -61 to 149°F (-76 to 149°F with stainless steel housing), power supply 18-100VDC and 85-265VAC (self-switching), 4 and 9 wire remote mount options, and 1/2in NPT or M20 conduit connections. The user interface module can rotate 360° in 90° increments by software selection. It is NAMUR-compliant, IEC 61508 certified, and IP66/67/69 rated. Wireless THUM is optional.
