Product Specifications
- Manufacturer
- Endress+Hauser
- Product Number
- Proline Promass S 100 / 8S1B
- Type
- Hygienic Coriolis Flow Meter
- Nominal Diameter
- DN 8 to 50 (3/8 to 2in)
- Mass Flow Accuracy (Liquid)
- ±0.10%
- Volume Flow Accuracy (Liquid)
- ±0.10%
- Density Accuracy (Liquid)
- ±0.0005 g/cm³
- Measuring Range
- 0 to 70,000 kg/h (0 to 2570 lb/min)
- Medium Temperature Range
- -50 to +150°C (-58 to +302°F)
- Max Process Pressure
- PN 40, Class 150, 20K
- Wetted Materials
- Measuring tube 1.4435 (316L), Connection 1.4435 (316L)
- Hygienic Certifications
- 3-A, EHEDG conform, large range of hygienic connections
- Process Recovery
- Fast recovery from CIP/SIP
- Transmitter Housing
- Ultra-compact
- Ingress Protection
- IP69K
- Local Display
- Available
- Documents
- Product Manual, Product Specs
Product Description
The E+H Proline Promass S 100 Coriolis flow meter meets all hygienic requirements for installation in the food and beverage industry. Combined with the smallest transmitter housing available today, it delivers full performance on the smallest footprint. Designed for applications where space is at a premium, it is the preferred choice for system integrators, skid builders, and equipment manufacturers.
3-A and EHEDG conform with a large range of hygienic process connections. Fast recovery from CIP/SIP. Mass flow accuracy ±0.10%, density accuracy ±0.0005 g/cm³.
Ultra-compact transmitter housing with IP69K protection. Local display option available. Heartbeat Technology ensures measurement reliability.
Related Products
Resources & Documentation

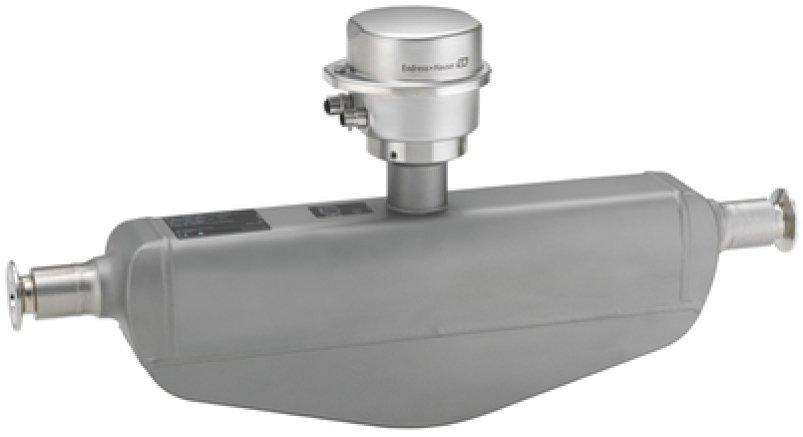

Ultra-Compact Hygienic Coriolis Meter - Self-Drainable, IP69K | E+H Proline Promass S 100
