Product Specifications

Manufacturer: Optris

Product Number: CSVision R2M

Type: Ratio Pyrometer with Thermal Imaging

Temperature Ranges: 1 channel: 250 to 1400°C (482 to 2552°F); 2 channel: 300 to 1400°C (572 to 2552°F)

Optical Resolution: 75:1

Thermal Resolution: 0.1 K

Spectral Range: 1.35 to 1.75 μm

Accuracy: ±0.5% of reading + 2°C

Response Time: 1 ms to 10 s adjustable

Emissivity: 0.05 to 1.1

Slope: 0.7 to 1.3

Measuring Modes: 1-color or 2-color (ratio) mode

Focus: Motorized, 350 mm to infinity

Sighting: Inbuilt crosshair laser (635 nm / <1 mW) and video sighting

Field of View: 8° x 6°

Outputs: 2x 0/4-20 mA

Digital Interfaces: USB standard, optional RS485 / Modbus RTU

Programmable I/O: Alarm output, trigger input, analog input for external emissivity/slope

Enclosure: Stainless steel, IP65 (NEMA 4)

Certifications: IEC 60068-2-27/6/64 (shock/vibration)

Ambient Temperature Operation: Up to 60°C (140°F) without cooling

Documents: Product Manual, Product Specs

Product Description

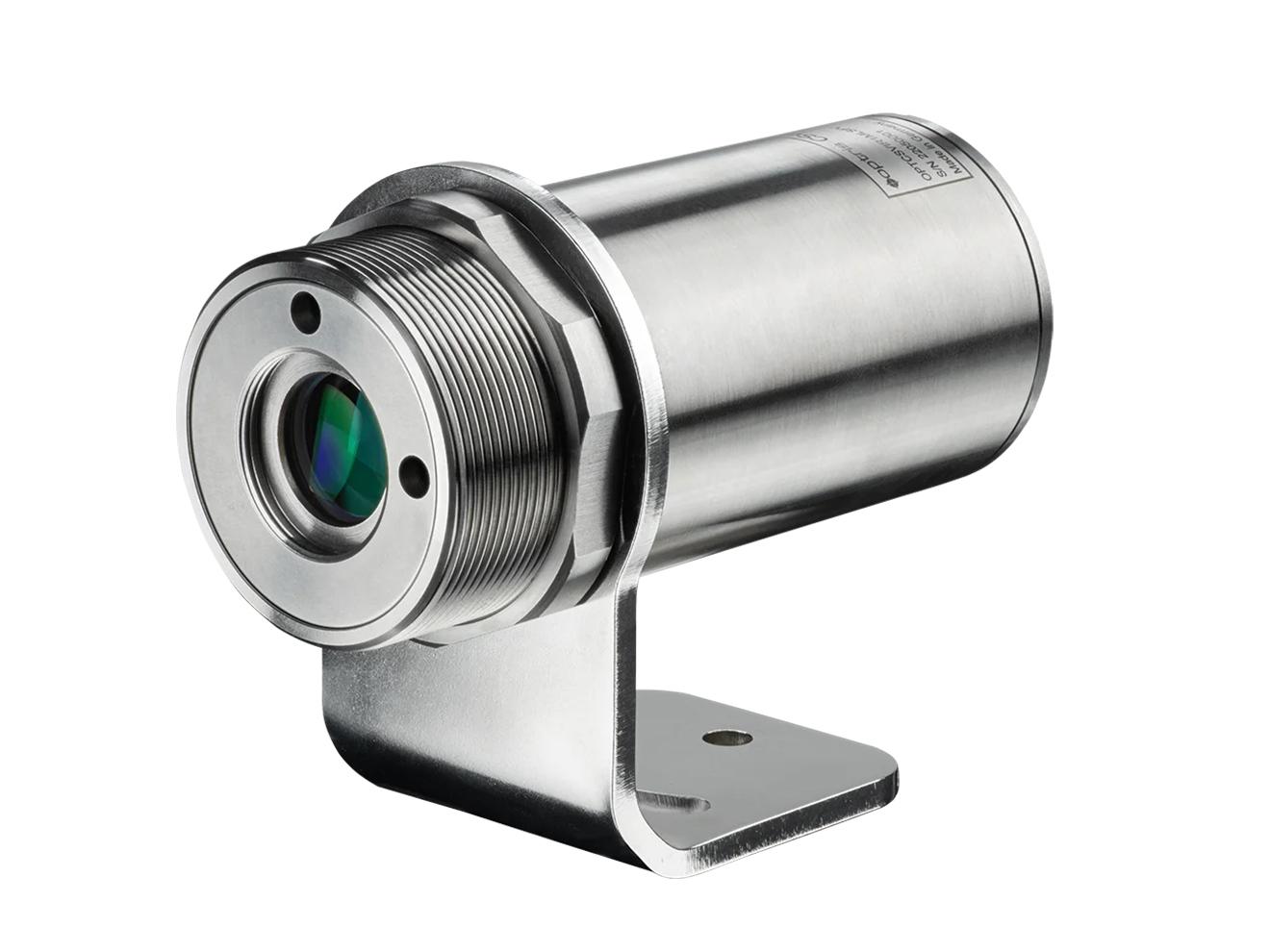

The Optris CSVision R2M Ratio Pyrometer is a compact and durable design built for noncontact thermal imaging. Optical resolution on this sensor is 75:1, with 1 to 2 channel measurement ranges from 250 up to 1400°C, a 8° x 6° field of view, and 0.1K thermal resolution .

Features include 1 vs 2 color measuring modes, ideal for unobstructed vs obstructed measuring respectively. An inbuilt crosshair laser and video sighting allows for easy alignment in various conditions, and the 2-level brightness reduction component improves visibility of bright and/or reflective objects being measured. The sensor integrates Smart Ratio Mode technology which allows for quick and accurate slope adaption, with a response time as little as 1ms .

Process data and sensor adjustments can all be accessed in real-time through the standard-issued CompactPlus Connect Software package, or through the IRmobile Android app. This unit is housed in an IP65 (NEMA 4) rated stainless steel enclosure, with shock and vibration protections. The sensor is usable in ambient temperatures of up to 60°C (140°F) without the need for cooling .
