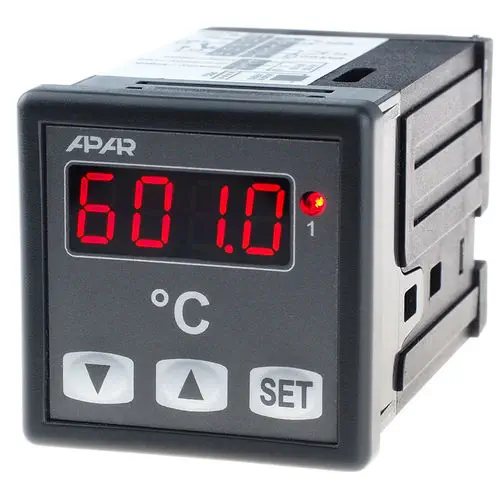

The APAR AR601 is a robust and highly versatile microprocessor-based temperature controller designed for precision thermal management in demanding industrial environments. Housed in a compact 48x48mm (1/16 DIN) INCABOX XT enclosure, this unit is engineered to provide high accuracy while maintaining strong resistance to electromagnetic interference.

Universal Sensing Capability

The standout feature of the AR601 is its universal measurement input. It supports a wide range of thermal sensors, including Pt100 resistance thermometers and eight different types of thermocouples (J, K, S, R, T, B, E, and N). This flexibility allows engineers to standardize on a single controller model for various process requirements, from cryogenic applications to high-temperature furnace monitoring. The input is fully programmable, including measurement ranges and software-based digital filtering to stabilize readings in noisy electrical environments.

Advanced Control and Security

For process stability, the AR601 offers dual control modes: a sophisticated PID algorithm with an Auto-tuning function for perfect setpoint attainment, and a traditional ON-OFF mode with adjustable hysteresis for simpler heating or cooling tasks. The unit provides a single control output that can be configured for either a high-capacity relay (5A) or a Solid State Relay (SSR) driver. To ensure operational integrity, the controller includes password-protected parameter configuration and a locking mechanism to prevent unauthorized changes to set values.

Reliable Industrial Design

• High-Visibility Display: Features a bright 9mm LED display with adjustable brightness for clear readout in all lighting conditions.
• Durable Construction: Built from flame-retardant NORYL 94V-0 material, with an IP65-rated front panel to withstand dust and moisture.
• Efficient Power Options: Available in both universal AC (85-260V) and low-voltage AC/DC (24V) power supply versions.
• Manual Mode: Includes a manual output control option for testing and maintenance procedures.

Typical Applications

• Industrial drying ovens and furnaces
• Plastic processing and extrusion machinery
• Food and beverage sterilization processes
• HVAC systems and climate-controlled chambers
