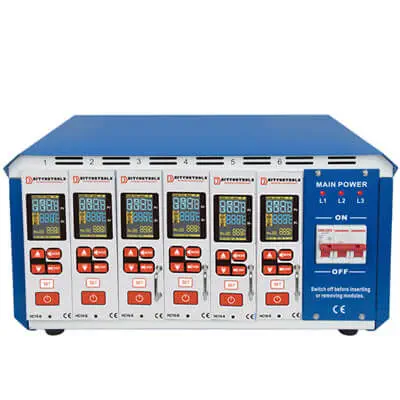

The Hitcontrols Hot Runner Digital Temperature Controller is a professional multi-zone system designed specifically for the demanding requirements of plastic injection molding. With over 26 years of experience in the field, Hitcontrols offers a controller that combines precise temperature management with robust construction and industry-standard compatibility. The system is built around a modular mainframe architecture, supporting configurations from compact 1-zone units up to expansive 48-zone systems. Each zone is capable of delivering a substantial 15 Amps of power (3600W), with 30 Amp options available for applications with higher power demands.

One of the key advantages of the Hitcontrols system is its interchangeable HC15 series modules (HC15-B, HC15-S), which are designed to be fully compatible with the pinouts and form factors of major industry players such as DME, Athena, IMS, MCS, Husky, and INCOE. This flexibility allows manufacturers to easily integrate Hitcontrols components into existing hot runner setups or use them as direct, cost-effective replacements without requiring extensive rewiring or system redesign. The modules utilize advanced microprocessor-based PID control with auto-tuning capabilities to maintain a tight temperature accuracy of ±0.1% F.S across a range of 0 to 450°C (32 to 842°F), accepting both J and K type thermocouple inputs.

The controller is engineered for both performance and protection. Advanced features like a Boost function facilitate rapid heat-up times to increase productivity, while a Soft Start capability protects delicate heater elements from thermal shock during initial power-up. Operators can choose between zero-cross or phase-angle firing modes to optimize for different heater types and electrical environments. A comprehensive suite of diagnostic and alarm functions continuously monitors the system for faults, providing immediate alerts for over-voltage, sensor reversal, load short circuits, blown fuses, Triac breakdown, overload conditions, and thermocouple failures. This proactive monitoring helps prevent production downtime and protects valuable tooling.

Hitcontrols mainframes are built for industrial environments, with all components neatly contained within the enclosure. Standard mainframe input power is 380V 3-phase, with 240V 3-phase or single-phase options available for smaller 1- and 2-zone configurations. The system is designed to operate reliably in ambient temperatures from 0 to 55°C. For larger systems, optional features such as RS485 communication, remote standby, and HMI-based control panels can be integrated to enhance operational oversight and data collection. Standard 3-meter power input and output cables simplify installation. This combination of scalable architecture, broad compatibility, and robust protection makes the Hitcontrols controller a reliable workhorse for hot runner temperature management.

Technical Specifications
